Hfo Heavy Fuel Oil Treatment Machine with High Speed Centrifuge Oil Separator

Product Description

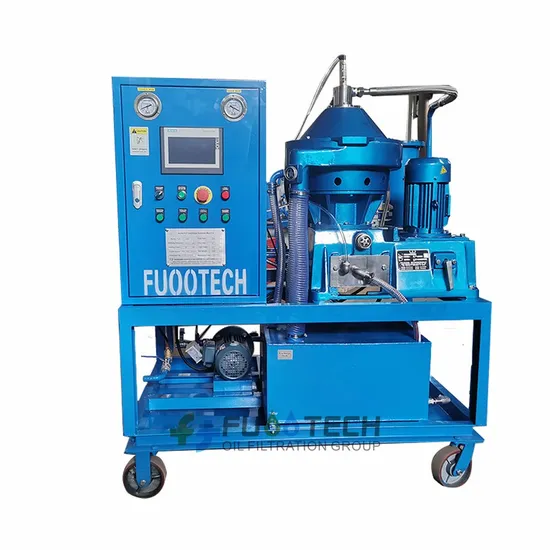

FUOOTECH Series FCF Centrifugal Oil Purifier Centrifuging Oil Water Separator
Brief Introduction:
Series FCF Centrifugal Oil Purifier is designed for the Purification, concentration, clarification of mineral oils such as fuel oil, light oil, diesel oil, lubricating oil, turbine oil, hydraulic and work shop oils, vegetable oil, etc.
Series FCF is mainly used to remove water, particles and mechanical impurities from diesel oil, lubricating oil and other mineral oil so as to reduce wear of the diesel engine and other machines, and prolong engine life.
Features: High effective Filtration System. Adopting progressive filtering tech, the best precision can be upto 0.5 micron, which can remove more than 99.99% of impurities from the oil.
High density heater system, which can speed up water removal by increasing oil temperature that can help water molecule get away from oil molecule more quickly after get heating. But over-heating may damage the oil's quality, FUOOTECH choose the high density heater system to solve this matter, making the heating load less than 1.5W/cm2, stable temperature controller controls the oil heating temperature automatically, safe and reliable.
With famous brands of Electrical components and protection system for over-voltage, over-current, over-load, phases lacking, etc., any problems happen, the whole machine stops automatically. Advanced protection for blockage on oil inlet point where vacuum transmitter is installed, if it's blocked, machine will stop automatically.
PLC system is installed, making the whole operation fully automatically, and PLC display screen shows all the operation status and any problem . Able to be equipped with Heat recovery device as optional. Low maintenance time and cost.
Technical Specification:
Treatment capacity: 1200 ~ 7000 LPH
Heater Power: 30 ~ 120KW or above, as per request
Operation mode: continuous working
Continuous working hours: ≥150 hours
Avg. working hours without troubles: ≥5000 hours
Used Oil Viscosity: 2 ~ 220 mm2/s
Working pressure: ≤0.3 MPa
Heater temp.: 40 ~ 70 ºC
Power Supply 380V, 50Hz, 3Ph
Drum Rotating Speed: 6200 ~ 9000 rpm or as per request
Water content (after purification): ≤50ppm
Purification particle precision (after purification): ≤5 micron
Cleanliness (after purification): ≤6 NAS1638

---
