4"Steel Mecanum Wheel (right) Omnidirectional Wheel Mecanum Robot Wheel Compatible Gobilda/Tetrix/Rev/Ftc/Frc

Product Description

Diameter	100mm(4 inch)
Width:	39.5mm
Load capacity per whee	35Kg

All products in our store Ex-factory price not free shipping For more information, please contact online customer service or email me(zhouyu8@ zhouyu8@ thefirsttool.co m) The three sided profile of 3120 Series Channel offers support to axles that run perpendicular to your frame with a bearing on each side of the channel in order to maximize the load-bearing capabilities. The large central cavity provides protection to motors, batteries and drive components housed within. The channel provides multi-directional support given it has surfaces perpendicular to one-another. Thefirsttool is a parts library specially built for individuals and teams such as robot competitions and robot enthusiasts.
It is compatible with gobilda/Tetrix/REV/FTC/FRC and other competitions, and can meet the daily creative construction needs.

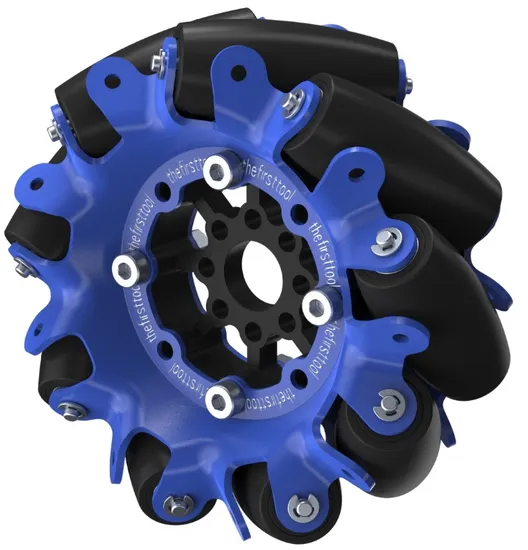

This is a piece of 100mm right steel Mecanum wheel, it supposed to work with other 4" Mecanum wheel(1 right,2 left). It includes 9 rollers attached to its circumference. These rollers have an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of rotation of the wheel. Mecanum wheel using a standard chssis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways,Besides, these rollers are mounted with ball bearings, contributing to capable of moving. With a 100mm diameter and 39.5 Width these wheels allow for a lower profile giving more space for building mechanisms and space for game elements.
What you will get
One steel mecanum wheel(right)
Specifications:
Diameter:100mm(4 inch)
Width:39.5mm
Number of Rollers per wheel:9
Number of Plates per wheel:2 Bearing Type: Rolling Bearing
Body material: steel
Roller material: Nylon+TPR
Net weight per wheel:179g
Load capacity per wheel:35Kg

---
