US$16,500.00-29,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Rack and Pinion
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Spindle
9kw Hsd Spindle/ Hqd
Controller
Taiwan Syntec Controller
Table
Double Layer PVC Vacuum Table
Pump
5.5kw Air Cooling Pump
Rotate Agree
From 0 Degree to 180 Degree
Dust Collector
3kw with Double Bags
Transport Package
Plywood Box
Specification
package: 3500mm*2000mm*1900mm
Production Capacity
600 Sets/ Year
Product Description

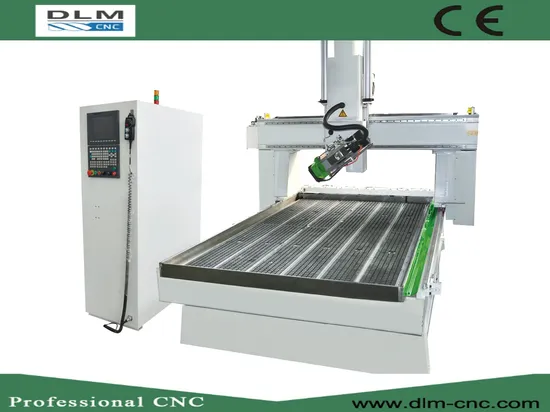

Four Axis CNC Machining Center WA-48
| Spindle Power | 9kw HSD / HQD |
| Controller | Taiwan Syntec control system |
| Motor | Jaskawa servo motor/1kw Delta |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | PVC vacuum table |
| Vacuum Pump | 5.5kw Chinese Becker pump |
| Tool Magazine | ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks |
| Software | Router-8 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | high pecision |
| Guide Rail | Taiwan HIWIN 25mm |
| Table Size | 1300mm*2500mm / 1500x3000mm optional |
| Max. Traveling Size (X/Y/Z) | 1600x3100x200mm |
| Max. Workpiece Height | 250mm |
| Package | plywood box |
| Net Weight | 2500kg |
Upgrade:
Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover
Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Aluminum alloy tool magazine
Loading & unloading roller table
floating table
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
>>
