US$0.10-50.00
|
500 Meters
(MOQ)
|
Basic Info.
Material Shape
Round Wire
Wire Core Material
Copper or Aluminum
Certification
ISO, CCC, CE, RoHS
Standard
ASTM, BS, as, DIN, CSA, IEC, GB/T
Transport Package
Wooden Drums, Steel-Wooden Drums, Steel Drums
Production Capacity
10, 000, 000km Per Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
Product Parameters

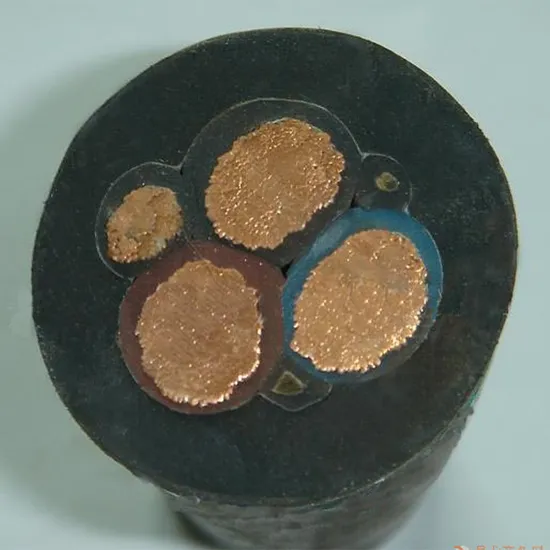

| Rubber Insulated Mining 8kv Power Cable-ICEA S 75-381(SHD-GC) |
| Number of Cores and conductor size | Conductorstrand | Nominal Thickness of Insulation | Ground conductor size | Ground -check conductor size | Nominal Thickness of jacket | Approx. Overall Diameter | Approx. mass | Ampacity |
| AWG/kcmil | No | mm | AWG | AWG | mm | mm | kg/km | A |
| 3×4 | 259 | 3.8 | 8 | 8 | 5.2 | 49.3 | 3594 | 122 |
| 3×2 | 259 | 3.8 | 6 | 8 | 5.6 | 53.8 | 4554 | 159 |
| 3×1 | 259 | 3.8 | 5 | 8 | 5.6 | 56.1 | 5104 | 184 |
| 3×1/0 | 259 | 3.8 | 4 | 8 | 5.6 | 58.9 | 5700 | 211 |
| 3×2/0 | 329 | 3.8 | 3 | 8 | 6.0 | 62.5 | 6593 | 243 |
| 3×3/0 | 413 | 3.8 | 2 | 8 | 6.4 | 66.5 | 7738 | 279 |
| 3×4/0 | 532 | 3.8 | 1 | 8 | 6.4 | 69.8 | 8713 | 321 |
| 3×250 | 608 | 3.8 | 1/0 | 6 | 6.4 | 73.4 | 9948 | 355 |
| 3×300 | 741 | 3.8 | 1/0 | 6 | 6.7 | 77.2 | 11384 | 398 |
| 3×350 | 851 | 3.8 | 2/0 | 6 | 7.1 | 81.3 | 12739 | 435 |
| 3×500 | 1221 | 3.8 | 4/0 | 6 | 7.5 | 90.4 | 16757 | 536 |
Detailed Photos
Packaging & Shipping
* We can design and produce ACSR according to client's requirement. Any requirement, feel free to contact us!
Company Profile
Established in 1994,Henway Electric Group Inc has now developed into an innovative enterprise with strong R&D ability after 20 years in the
industry. It covers an area of 210,000 square meters and has more than 2,000 employees. It has successively introduced about 2,000 items of advanced R&D, production and testing equipment. The annual production capacity exceeds 30 billion yuan.
Henway's products can be divided into four categories,namely power cable, wire &cable for electrical equipment, communication cable and
building wire.They include insulated power cable of 220KV and below, Rubber insulated cable of 35KV and below, Aerial insulated cable,overhead
conductor,Mining cable etc,a total of nearly 30 product series with nearly 4,000 types and 50,000 items.The products are widely used in the fields of infrastructure, utility, hydro-water projects, iron, mining, petroleum, chemical industry,building,subway, high-speed rail,airports,etc.
They have been exported to more than 100 countries around the world.
Henway passed ISO 9001,ISO 14001,OHSAS 18001,and successively acquired TUV certificate,CE certificate,UL certificate and so on.More than 30 years of development and cultivation makes the extraordinary achievements of Henway.Henway is still promoting the enterprise's scale,technology
and brand construction.
Heway Cable-make pioneering efforts and forge ahead !
Certifications
FAQ 1. Q:How does your factory control the quality?
A:Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Q:Can I visit your company?
A: Sure,If you need,we will arrange the driver to pick you up.
3. Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4. Q:Have you ever supplied cables to our country?
A: Henway Cables have been sold to over 100 countries and regions in the world. you can contact me for details.
5. Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7. Q:How long is your delivery time?
A: According to your order's quantity. Usually our lead time is 3 - 20 working days.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 6 hours!!
>>
