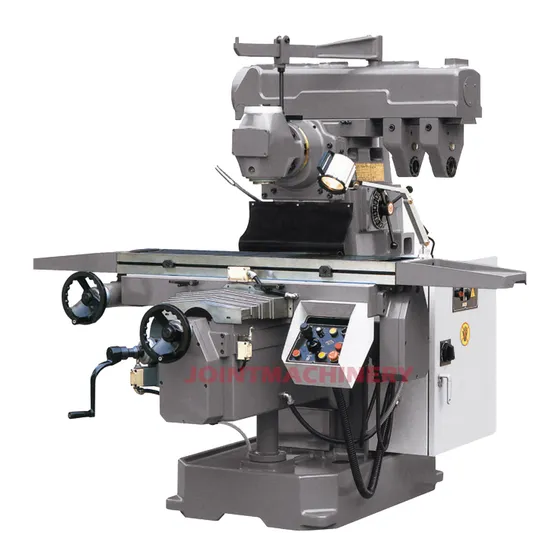

Precision Vertical Horizontal Milling Machine Bevel Milling Machine for Metal Molds

Product Description

Recombination Precision Vertical Horizontal Milling Machine
√ Application: Sewing machines, hardware tools, shoe molds, clocks, etc.
√ Suitable for semi-rough and precision processing.
√ Configure high-precision milling heads with wide speed range and high precision level.
√ Optional trapezoidal screw or ball screw, electronic or mechanical power feed or servo motor.
√ Easy to achieve vertical milling, cross milling processing requirements.
√ ±45°, bevel milling.
1. WORKTABLE
Our worktable is the pinnacle of craftsmanship, enhanced with ultra-audio quenching, precision grinding, and meticulously scraped guides for supreme smoothness. Add a rotary table to expand its multi-functional capabilities.
2. TURRET MILLING HEAD
Our advanced turret milling head is engineered to swivel 45° forward-backward and rotate 90° left-right, ensuring versatile milling for complex angles and intricate projects with ease.
3. SPINDLE
Fitted with a high-precision R8/NT30/NT40 spindle, our machine boasts a minimal spindle runout of just 0.003mm, delivering unmatched precision and accuracy.
4. X/Y/Z AUTO FEED
Revolutionize your workflow with our automatic X/Y axis feed and electric Z-axis lift, significantly boosting efficiency and simplifying operations.
5. DRO
Elevate your precision with our adaptable 2-axis or 3-axis DRO, crafted to meet your specific requirements and enhance performance.
Precision Vertical Horizontal Milling Machine Bevel Milling Machine for Metal Molds

Model				4VH
Table size			mm	1270*254
Travel		X axis	mm	900
		Y axis	mm	380
		Z axis	mm	360
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	440
Diameter of quill			mm	F85.725
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	132-4540/(16 grades)
		60HZ	rpm	160-5440/(16 grades)
	Rotation speed (Variable speed milling head)	50HZ	rpm	40-3125
		60HZ	rpm	50-3750
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Dimension			mm	1720*1870*1670
Weight			kg	1500
Max load of work table			kg	350

Shenzhen Joint Machinery Co., Ltd. stands as a globally acclaimed leader, distinguished by our expert manufacturing and export prowess in CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes. Our comprehensive selection of top-tier milling and grinding machines underscores our unwavering dedication to delivering first-rate machines and unmatched services worldwide. By integrating cutting-edge Taiwanese and German technologies, our production processes assure superior quality and reliability, upholding the industry's highest standards. Revered for their exceptional performance in precision, stability, and dependability, our machines proficiently tackle a variety of complex machining challenges. Our prestigious products have gained international acclaim, reaching markets across Asia, Europe, South America, North America, and beyond. We are devoted to fostering enduring partnerships with clients globally, consistently creating substantial business value together.

---
