High-Performance Elevator Roller Shoe with 2.0m/S for Maintenance and Replacement Needs

Product Description

Our Elevator Parts Roller Guide Shoes excel in accommodating a wide range of speeds from 0.25 to 10 meters per second. This ensures unmatched versatility for a diverse array of elevator systems.
Engineered with meticulous precision, our roller guide shoes come in diameters spanning from 45mm to 300mm, perfectly suiting various elevator configurations.
TCrafted from two premium materials-durable rubber and resilient PU-our rollers are designed to meet a spectrum of operational needs with reliable performance.
As a vital sliding interface between the elevator guide rail and the car, the guide shoe ensures the car remains confined to the guide rail, allowing only vertical movement.
Each elevator car is equipped with four meticulously installed guide shoes. These are strategically placed on both sides of the upper beam and beneath the safety clamp seat at the car's base. Additionally, four counterweight guide shoes are mounted at both the top and bottom of the counterweight beam.
The fixed guide shoes on the elevator car glide along the secured guide rails within the building shaft, effectively preventing any tilt or sway during operation.
Our extensive array of elevator guide shoes includes both rolling and sliding types, catering to varied elevator requirements with precision.

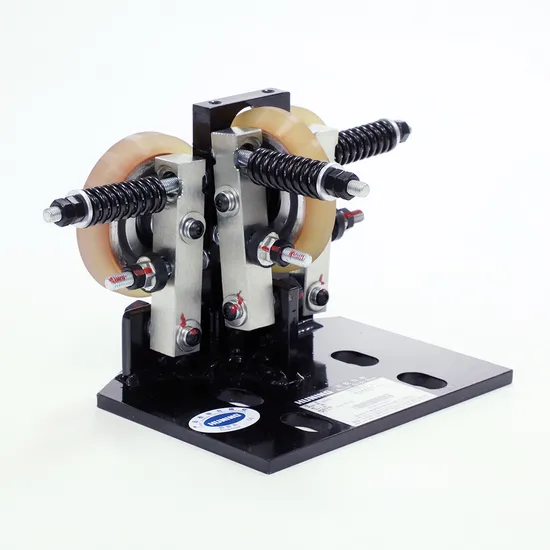

1. Rolling guide shoes, ideal for elevators operating at speeds exceeding 2 meters per second, feature 3 or 6 wheels that securely grip the track, ensuring optimal performance and stability.
Features: By employing rolling friction, these guide shoes drastically reduce friction losses, minimize vibration and noise, and enhance ride comfort. However, they require precise processing and installation for best results.
2. Sliding guide shoes, featuring a concave groove design that clamps onto the guide rail, are typically used for elevators operating at speeds below 2 meters per second.
Features: The fixed, straightforward structure of sliding guide shoes lacks an adjustment mechanism. Over time, the gap between the guide shoe and the guide rail can widen, potentially leading to shaking and impact during elevator operation.
Hangzhou Huning Elevator Parts Co., Ltd proudly supplies high-performance rolling guide shoes, meticulously tailored for superior elevator functionality.

TYPE	HNL70B	HNL90B	HNL105B	HNL125B	HNL160B	HNL200B	HNL260B	HNL160B	HNL200B	HNL260B
Rated speed (m/s)	<=1.75	<=2.0	<=2.5	<=2.5	<=4.0	<=5.0	<=7.0	<=3.0	<=4.0	<=5.0
Rail width (mm)	10,16	10,16	16,19	16,19	16,19	16,19	16,19	16,19	16,19	16,19
Diameter of roller (mm)	70	90	105	125	160	200	260	160	200	260
Max normal load (N)	800	1000	1000	1200	1000	1000	1000	1000	1000	1000
Recommended rated load	1150	1600	1600	2000	1600	2000	2000	3000	3000	4000
Material of roller surface	PU	PU	PU	PU	Rubber	Rubber	Rubber	PU	PU	PU

---
