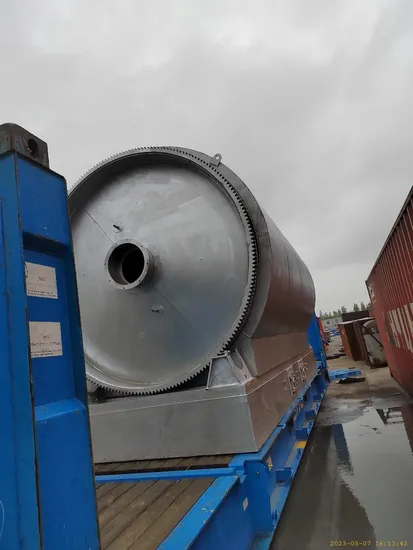

Special Tire Pyrolisis Machine Convert Used Tires to Oil

Product Description

1.Plant technical parameter

NO.	Name	Parameter
1	The raw materials:	waste tyres,
2	Daily capacity:	12 ton/day
3	The size of reactor	2800*6600mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-80%,
6	pyrolysis time	6-8 hours
7	Discharge time	1.5 hour
8	Feeding time	3 hourS
9	Cooling time	3 hours
10	Working pressure	Normal /slightly negative
11	Power	18 kw
12	Fuel	Coal. Wood, gas etc
13	Working area	1000 square meters
14	Total weight	35 000kgs
15	Reactor rotate speed	0.25-0.4/min
16	Noise	No less than 85DB
17.	Plant working area	700-1000 square meters

2.About oil rate for different material

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

3.Major parts
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4.You many interst

Pyrolysis plant (convert waste to fuel oil )	Type	Daily capacity	Used for	Final Product and usage
	Batch type	5Ton 10ton 12ton 15ton	Waste tyre Plastic Rubber Oil sludge Oily waste Others	Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil
	Semi-continuous type	15Ton, 20Ton
	Fully continuous type	20ton 30ton 60ton
	Special type	20Ton 15ton

5. About us
Shangqiu Harmony Machinery Manufacturing Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation. Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our company is about 133400 square meter ,and the workshop is 58000 squremeter ,we have lathes ,milling machines,grinding machines and planders , broaching machines ,pucnhing machines,NC lathes,CNC miling machies,digital control drill and other testing device.We have more than 100 workers including 3 high-class engineers,10 professors ,and 40 technicists.Our Machine have been sold to India, Malaysia, Pakistan, Bangladesh, Lebanon, Mexico, Europe ETC.
6.Tire Oil Paramter

Item	Tire Oil
Density g/cm3	0.90-0.92
Freezing Point oC	-10
flash point oC	50
Kinematic viscosity mPa.s	6
Combustion valuekJ/kg	10500

---
