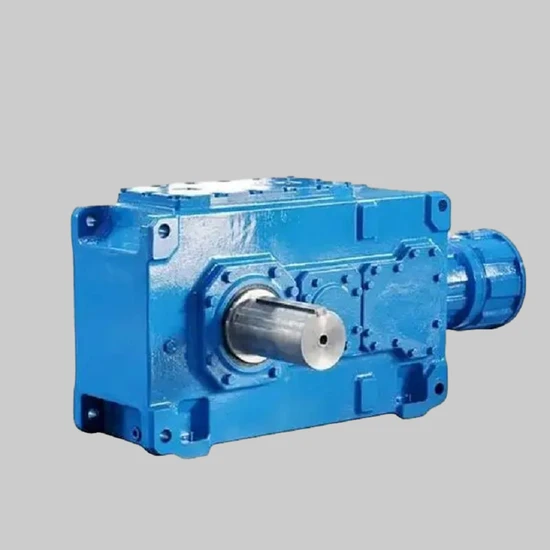

Industrial-Grade Hb Series Gearbox Reducer for Enhanced Performance

Product Description

Product Parameters
1. Model Number Types: H1,H2,H3,H4 Parallel Shaft Gearbox Sizes: 1,2,3,4,5,24,25,26 2. Product Characteristics (1)Large torque range, capable of horizontal mounting and vertical mounting. (2)High-efficiency and long life-span, high permissible axial and radial loads. (3)Low noise, high reliability and compact structure and so on. (4)Output shafts type: solid shaft, hollow shaft and hollow shaft with shrink disk. (5)Low noise, high reliability and compact structure. DimensionsCustomization according to the application. Rated Power:4KW~3015KW Rated Torque:0.79N.m~900KN.m Gear Arrangement:Helical Hardened Gearbox Input Speed:1500r/min,1000r/min,750r/min Housing:Casting iron or Steel-plate welding case
Technical Parameter
Product Description

Input Power	Ratio	Allowable Torque(T2N)
4-3015 kW	1.25-450	790-900000N.m

Ratio	I=1/1.25~1/450
Gear Arrangement	Helical Hardened Gearbox
Rated Torque	0.79n.M~900kn.M
Rated Power	4kw~3015kw
Input Speed	1500r/Min,1000r/Min,750r/Min

Description: HB/HH series spur gear reducer adopt general design layout, and can transform into special gearbox according to customer's requirements. It is suitable for high-power motors, with large torque capacity, modular design and multiple output modes. The utility model has the advantages of high efficiency, long service life, bearing large axial force and radial load, low operation noise, high reliability, compact structure, etc. Four series of reducers can be combined to increase the range of ratio.
Characteristics: 1. Transmission speed gearbox housing of one size can realize parallel shaft, rectangular axis, horizontal and vertical mode, which reduce the parts variety and increase the specifications. 2. Industrial gear boxes's sound-absorbable structure, lager housing surface and big fan reduce the temperature-increasing and noise, and with the advanced grinding technology adopting on cylindrical gear and bevel gear, the transmission reliability and efficiency have been increased. 3. Input mode: Motor connected flange mode, shaft mode. 4. Output mode: Solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with spline and solid shaft with flange. 5. Speed reduction gearbox has Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.
Our Advantages Main Series Product: R series helical gear motor reducer, K series spiral bevel gear reducer, F series helical gear motor reducer ,S series helical gear motor reducer,P/Vseries planetary gear reducer, H B series helical gearbox, Z (ZDY, ZLY, ZSY, and ZFY) serial hard tooth surface cylindrical gearbox reducer, D (DBY and DCY) serial hard tooth surface cone gear reducer, cycloidal speed reducer, etc. Meanwhile, map sample processing business can be undertaken.

---
