Vibrating Fork SwitchVibrating fork switch is compact mini vibrating switch with durable stainless steel body and a miniature fork can be used for a variety of liquid applications, it is also called mini vibrating level switch , mini tuning fork switch . Mini Vibrating fork 's compact size allows for application...
Send Inquiry
Vibrating fork switch is compact mini vibrating switch with durable stainless steel body and a miniature fork can be used for a variety of liquid applications, it is also called mini vibrating level switch , mini tuning fork switch .
Mini Vibrating fork 's compact size allows for application in places a larger tuning fork level switch can not installed properly , no mechanical moving parts with no routine maintenance requirement , there is not influence on low dielectric constant measuring medium.

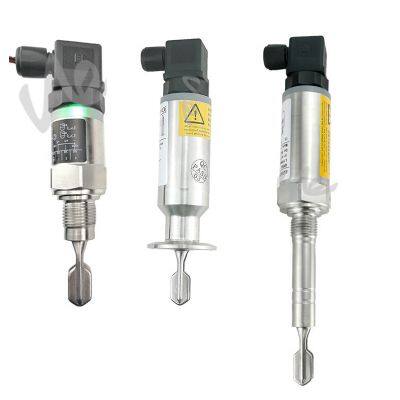

Mini(40mm fork),standard (100mm fork),extension tube extension vibrating fork switch ,which are all high reliability and performance .
Measure Medium
| Liquid
|
Vibrational Frequency
| 350/1000HZ
|
Accuracy
| ±2mm
|
Fork Length
| 40mm or 100mm
|
Measuring Length
| 40-1000mm
|
Ambient Temperature
| -30-80℃
|
Operation Temperature
| -30-150℃
|
Repeatability
| ±2mm
|
Indication Method
| LED
|
Power Supply
| 24V DC
|
Power
| 1 W
|
Signal Output
| SPDT/PNP/NPN/NAMUR
|
Maximum Load
| SPDT(5A); PNP/NPN(350mA)
|
Body Material
| Stainless steel
|
Pressure Range
| -98KPa-3MPa
|
Wetted material
| SS304/SS316
|
IP Grade
| IP67
|
Process Connecting
| Thread, Tri-clamp
|
Electrical Interface
| Hersman Joint / Aviation Joint
|
| | | |
Standard
| Standard (Small Fork)
| Sanitary (Clamp)
| Other
|
Model Selection
|
WAPX503
| Vibrating Fork Switch
|
/
| Code
| Product Type
|
A
| Standard
|
B
| High Temperature
|
C
| Sanitary
|
/
| Code
| Insertion Length
|
01
| 40mm
|
02
| 100mm
|
03
| Extended 100mm～3000mm Available
|
04
| Cable Type Extended Split 1～100m Available
|
/
| Code
| Power Supply
|
D
| 24V DC±10%
|
/
| Code
| Material
|
1
| SS 304（Standard）
|
2
| Ss316
|
3
| Other Material (Please Remark)
|
/
| Code
| Process Connecting
|
G
| G1"Thread（standard）
|
T
| 1"NPT Thread
|
C
| Customer Other Request (Please Note Spec)
|
F
| Flange Connecting (Please Note Flange Spec) &Standard）
|
/
| Code
| Other Parameters
|
A
| Normal Temperature: ℃
|
B
| Normal Pressure: Kpa
|
C
| IP Grade：IP66
|
D
| Explosion：ExdⅡCT6
|
E
| Max Temperature:℃
|
F
| Max Pressure:Kpa or Mpa
|
（）
| Customer Other Request
|
/
|
503
| A
| 01
| D
| 1
| G
| AB (Example )
|
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are manufacturer for almost 20 years. Welcome to visit our factory at any time.
Q2. What's the payment term?
A2. T/T, MasterCard, VISA, Western Union etc . Q3. How about the delivery time ?
A3. 2-3 days for standard models. For big orders, it takes about 10-15 days.
Q4 . Can we get samples for quality inspection ?
A4. Yes , welcomed, sample will be free or little charge for customer.
>>
