New Type CATV Analog Modulator CATV Headend Modulator 24 Ways

Product Description

New Type CATV Analog Modulator CATV Headend Modulator 24 ways
Description:

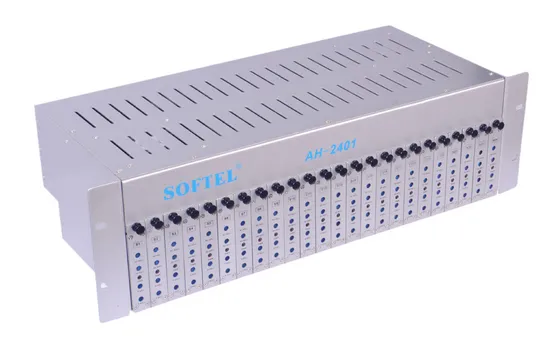

Description: The AH1924M is a 4RU rack mounted chassis that allows for installation of up to 24 pieces microprocessor-controlled fixed mini-modulators Or 24 pieces agile modulators.Built-in active combiner eliminates unnecessary cabling and potential connection problem and ensures high output level .All modulators are perfect factory set to desired channel and proper offset.

Features: 1. Switching power supply for installation flexibility and precise voltage regulation 2. Two cooling fans for long life performance 3. 45dBmV chassis output level,no need extra combiner 4. SAW(surface acoustic wave) filtering on IF for superior in band C/N 5. Front panel access controls enables easy setup

Parameter:

Frequency range	47~860MHz
Output level	45dBmV
C/N in-band	60dB
C/N out-band	62dB
Video input connector	RCA (Yellow)
Audio input connector	RCA (White)
RF output connector	75Ω F-Female
Voltage input	DC 5V for mini modulator AC 240V input chassis
Output Frequency	47-860MHz
Output Level	Fixed :113dBμV(Adj.) Agile :105dBμV(Adj.)
A/V Ratio	-11 to -18dB(Adj.
Frequency Stability	Fixed: ±5KHz Agile : ±5KHz
Video	75ΩF-female
Input Level	0.6-1.5Vp-p(87.5% Modulation)
Video C/N	50dB
Hum/Noise	-50dB
Modulation Range	0~90%
Audio	75ΩF-female
Input Level	1Vp-p(25KHz Dev.)
Distortion	1%

---
