Inline Measurement Active Pneumatic Blade Consistency Transmitter with Best Price

Product Description

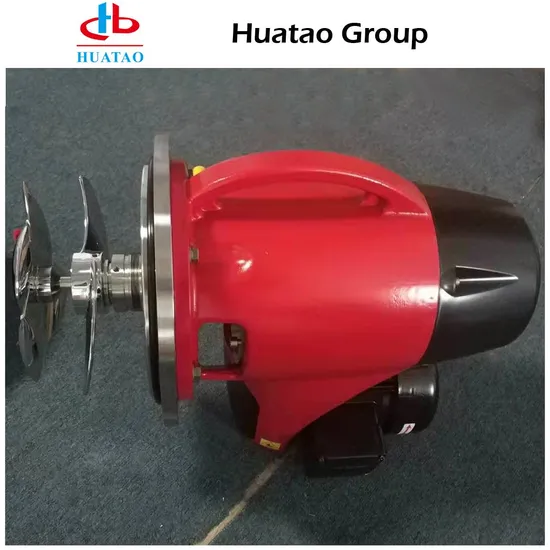

Blade Consistency Transmitter
Product Description
Consistency Transmitter Tybe1: RC81 Technical Parameters:
1. Working range: 1~16% concentration (according to measuring components)
2. Sensitivity: better than ±0.005%
3. Measurement accuracy: close to sensitivity under stable conditions
4. Damping time: 1~100S
5. Maximum working pressure: 1MPa, 80°C shell: cast aluminum
6. Contact medium part: stainless steel
7. Motor: 3-phase 380VAC, 370W, IP54
8. Analog signal output: 4~20mA, load 0~750
Main Features:
1. Liquid crystal display, which can realize multi-point, parabolic calibration and easy to operate calibration;
2. Signal damping and filtering are very low, signal to noise ratio is high, and has high precision;
3. Not affected by pulp, fiber type, freeness, Kappa number, flow rate, pressure, etc.;
4. It is little affected by pH and temperature, and the temperature can be compensated;
5. Unaffected by pressure, air bubbles, and electrical conductivity;
6. Fast response, short reaction time and control dead time, and good controllability;
7. It can be installed on horizontal, vertical, or inclined pipes. The sensor shaft should be horizontal and the motor should be under the sensor.
Consistency Transmitter Type 2 :
External Rotary Electronic Online Pulp Consistency Transmitter
External rotary pulp concentration Transmitter is mainly composed of a controller, external spin concentration sensor,
measuring bucket, diluted water valve, four parts
Specification:
Measuring range:1%---6%
Working environment: up to 60
application :
Long fiber pulp components: Stainless steel 304
principle: Pulp shear force power:220v
accuracy :0.02%
Sensor power:380v
sensitivity :up to 0.01%
Analog signals :4-20mA
Repeat accuracy :0.2%
Digital signal : RS422
cycle :1s-20s
ratio :0----100 Detailed Photos
