Tony 2024 New Design Wood Chips Drum Dryer Drying Machine

Product Description

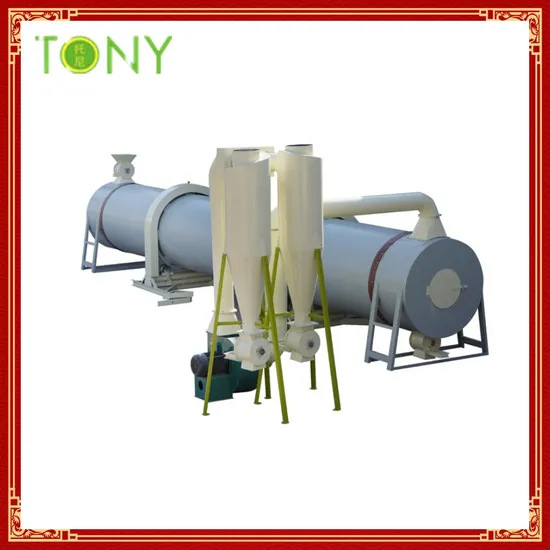

Tony 2024 New Design Wood Chips Drum Dryer Drying Machine
1.Brief introduction of our Rotary Drum Dryer:
The rotary dryer is composed of stove, main rotary body,screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%.

Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder.
Scope: wet wood chips, wood sawdust etc.
2.Technical Datas of Rotary Drum Dryer

Model	Power(KW)	Evaporate (T/h)
THG10-12	4	0.2
THG12-12	5.5	0.3
THG15-12	7.5	0.5
THG15-24	11	0.8
THG18-12	11	0.7
THG18-24	15	1.2
THG20-12	18.5	0.9
THG20-24	22	1.5

3.Raw Material for high quality algae rotary drum dryer
Sawdust, wood chips,EFB or other biomass raw materials. Rotary dryer is also widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
4.Features for high quality algae rotaty drum dryer

1. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
5.Structure for high quality algae rotary drum dryer

Rotary dryer is mainly composed of heating device,feeding device, supporting device, cylinder, gears, discharging device and so on. Rotary dryer's main body is a rotary cylinder with a certain inclination, equipped with combustion chamber, exhaust device, dust collector, and feeding device. High-temperature flue gas is used as the drying medium, which enters the dryer under the suction of ventilation device.
6.Working principle for high quality algae rotary drum dryer

Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
7.More Details for Rotary Drum Dryer

8.Packing and Shipping
9.Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
10.We can also supply for the pellet machines as following:
1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.The TYJ Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.
11.The advantages of buying equipments in our company are:
1. a full range of design, construction, equipment supply, construction, installitionupervision and commissioning, staff training;
2. license for the design, construction, installation, wiring, and other works;
3. full certification of equipment;
4. officially registered trade mark;
5. full warranty, post warranty and service;
6. warranty on all equipment - 13 months;
7. ratio price-quality-assurance;
8. vast project experience. we have established and put into operation so many of pellet plant productivity on the finished product from 0.5 to 20 t / h in Malaysia, Thailand, Vietnam, Germany, France, Bulgaria, Serbia, Romania, Korea, Australia etc;
9. large stock of finished equipment and spare parts;
10. all equipment of our production, equipped with electric motors and gearboxes, that made in big company
12.TONY Customer All Over The World
13.Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
14.CE CERTIFICATE:
15.FAQ: 1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China.
You can fly to Jinan airport and then we will pick you up(40 minutes by car) .
All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality
controlling from the very beginning to the very end. Our factory has
gained CE authentication.

---
