Multiple Colors Can Be Customized/Minibus/Golf Cart/Hunting Car/Sightseeing Car New Version/Can Be Added Bucket/Feel Free to Contact Timely Reply

Product Description

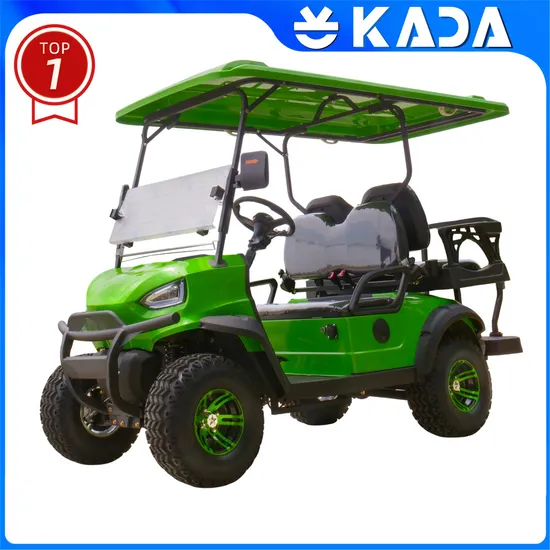

Annual Best Selling New Programmable 48/60/72V 6 Seats Sightseeing Shuttle Bus Hunting Vehicle Buggy Electric Golf Cart.

motorcycle type
	New 2 + 2 (4 seats)		New 4 + 2 (6 seats)
Overall dimensions: length * width * height	2950*1340*2000mm		3500*1340*2000mm
Packaging dimensions (wooden box packaging)	3000*1350*1250mm		3700*1350*1250mm
running speed	45km/h
maximum gradability	30%
endurance mileage	80-100Km
Rated manned	Four people		Six people
wheel base	1708mm		2400mm
Vehicle weight (kg)	560		620
any power-generating or power-driven machine	4KW AC motor (customizable 5KW motor)
Vehicle voltage	60V	72V	60V	72V
Battery type	Lead-acid maintenance-free 12V100A		Lead-acid maintenance-free 12V100A
Battery quantity	5 block	6 block	5 block	6 block
charger	On-board intelligent charger, charging time <8 hours (discharge rate 80%)
controller	Inball Controller
DC changer	High-power non-isolated DC-DC12V
steering system	Bidirectional gear rack steering system with automatic clearance compensation function
brake assembly	Four-wheel hydraulic brake, four-wheel disc brake
Front suspension	Double swing arm and independent front suspension + spiral spring + cylinder hydraulic shock absorber
The rear suspension	Integral rear axle, speed ratio of 16:1, spiral spring damping + barrel hydraulic damping
tyre size	Full-terrain 23*10.5-12 12-inch aluminum wheel with a diameter of 580 mm. (Customizable 14-inch hub)
platfond	Frosted black square pipe frame + polypropylene injection molding large top
floor board	Anti-skid floor, high strength structure, corrosion resistance, aging resistance
body of car	Front cover, seat cylinder, body and rear tail cover for automobile injection molding: frosted black square pipe roof;
seat	Overall foam forming cushion: high-grade imported leather (optional) color separation: inverted seat can be flipped, including storage box

instrument desk		Injection molding instrument panel, electric lock switch, double-arm combination switch, gear switch, water cup holder: USB data interface. The LCD electric vehicle combination instrument platform is an embedded multimedia touch LCD screen.
rearview mirror		A manually adjustable, foldable outer rearview mirror
Lights and signals		Light emitting diode front combination light (near light light, high beam light, turn signal light, daytime running light, position light light emitting diode rear tail light (brake light, position light, turn signal light): snail horn, reversing buzzer
front windshield		Acrylic Plexiglas (foldable)
Number of cabinets	20 Cabinet	10	8
	40 Cabinet	20	18

A variety of colors can be customized, a variety of styles can be customized, a variety of accessories can be selected
Q1. If there is any technical help after we receive the carts?
A: Yes, we supply 24 hours online service for free.
Q2. Do you have CE documents and other documents forcustoms clearance?
A: Yes, we have CE, after shipment, we will send you the Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q3. lf l want to visit your factory, how can l contact you?
A: Just send us your online contact number, we will discuss and make adetailed arrangement according to your time.
Q4. lf there are some problems with some parts during the warranty period, will your company repair or replace me?
A: Yes, we will send new carts parts to you within warranty time for free. Not including the consumable parts and Man-made damage.
Q5. How long can the carts be delivered?
A: Common cartss can be delivered within 3~10 working days.

---
