Potato Chips Processing Production Line Potato Chip Machine

Product Description

Product Description
1.-Potato Chips Production Line Potato Chip Machine
The potato chips machine line is an advanced snack food processing equipment. It integrates
the advantages of all kinds of individual machines, easy to be operated, continuous, powerful
and investment saving.
There are many components in this line:
Hoister,
Washing&peeling machine,
Picking conveyer,
Cutting machine,
Blanching machine,
Air cooling machine,
Continous frying machine,
Deoiling&air cooling machine,
Freezing machine(for frozen french fries),
Seasong machine(for potato chips/crisps),
Vertical packing machine(for potato chips/crisps).
All the machines and their applications in order on the potato chips(crisps) and
french fries(long strips)production line:

No.	Machine Name	Applications on the complete line
1	Hoister	Hoist the potatoes material into next step for peeling and washing.
2	Peeling&Washing Machine	The machine has the peeling effect achieved by rubbing of the carborundum roller on it, after the residue and skin are brushed off, the water spray device on the machine will wash the potatoes.
3	Picking Conveyor	Picking up the bad potatoes,remove the spoiled one by manual work.
4	Slicing Machine	Slicing potatoes into thin crisps with thickness ranged from 1.6mm to 2.0mm. Or cut into long strips in different sizes desired.
5	Washing Machine	Washing the crisps/long strips so as to remove the free starch on the surface of them, prevent the starch from dissolving in the frying oil and affecting the service life of the oil.
6	Blanching Machine	The crisps/long strips are needed to be blanched in hot water, for color protection, blanching time is 2 minutes.
7	Cooling Machine	Cool the products with cold water after blanching, lower their temperature for next processing.
8	Air Drying Machine	Cold air drying machine works for removing most water on the surface of the crisps/long strips. Keep the product dry before they are put into frying machine.
9	Continous Frying Machine	Continous frying machine fry the chips/long strips at a stable oil temperature so as to present in golden yellow color. Frying time is 2-3 minutes.
10	Deoiling&Air cooling Machine	To remove the redundant frying oil on the surface of products, and lower the temperature before get in the packing machine.
11	Seasoning Machine	Seasoning the chips/crisps by flavour.
12	Packing Machine	Vertical packing machine, automatically packs the crisps into small bags for sale on the market.

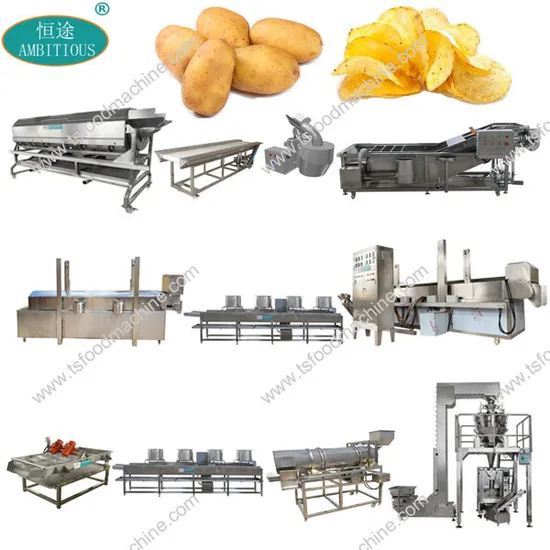

The drawing of the potato chips/crisps production line:
2.-Applications of Potato Chips Production Line Potato
Chip Machine
Mainly for frying potato chips, french fries, banana chips, and so on.
3.-Details of Potato Chips Production Line Potato Chip Machine

ITEM	MACHINE NAME
1	Hoister
2	Washing&peeling machine
3	Picking conveyer
4	Cutting/Slicing machine
5	Washing machine
6	Blanching machine
7	Water cooling Machine
8	Air cooling machine
9	Continous frying machine
10	Deoiling&air cooling machine
11	Seasoning machine
12	Vertical packing machine

Output capacity is from 150-1500kgs per hour.
4.-Production, Packing & Shipment
A).Packing:With wrapped film, or in wooden case.
B).Transportation: Sea containers, train, or other types.
5.-Company Summary
Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.
Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Seasoning machine,
Food starching machine,
Vacuum packing machine,
Complete potato chips/french fries production line,plantain chips production line,
Donuts machine,
Mask macking machine.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.

---
