Normal Precision New Sumore Made in Shanghai China Conventional Lathe Machine

Product Description

Product Description
(SUPER GOOD QUALITY ONLY!!!)

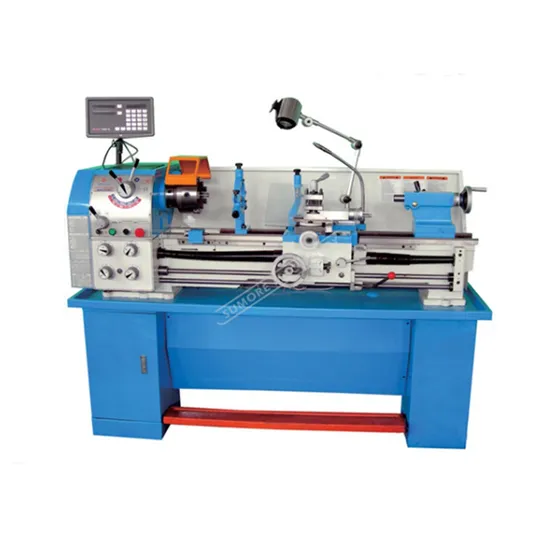

320x880/1000mm Education School Laboratory Precision Lathe SP2111
(Our lathe can be from small to big size, the web pages are limited, so please contact us for more details, we believe that there must be suitable models for you)
SP2111 Lathe machine to metal 320 x 880/1000mm and bore 38mm 51mm CQ6236A CQ6236B CQ6236G CQ6232L CQ6232E 1m bench lathe machine 1340 1440 CQ6236K lathe metal CQ6236L torno paralelo mechanical lathe torno paralelo mechanical CZ1340G/1 tornosparametal looking for distributors Lathes made in taiwan quality CZ1440G/1 lathe machine ordinary lathes for sale SUMORE KAIDA WMT C0636B CQ series High Speed Precision Lathe Machine/Metal Lathe Quick Detail: Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 880/1000mm
Swing over bed: 320mm
Swing over gap: 450mm
Spindle bore: 38mm
Description:
Main specification of lathe machine SP2111: Vertical and horizontal feed adopts interlocking mechanism and considerable safety design. Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting. Strictly following national standards that could meet requirement of worldwide adapted CE and SGS certification. Not only for common processing work, like turning, end-face, taper or screws, but also on special
occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Product Parameters

Model	SP2111
Max. Swing over bed	320 mm
Max. Swing over gap:	450mm
Max. Swing over cross slide	198mm
Distance between centers	880/1000mm
Range of spindle speed	8/70-2000r/min
Hole through spindle	38/51mm
Spindle taper	MT5
Range of longitudinal feed	(36kinds) 0.079~1.291mm/rev
Range of cross feed	0.17~0.276mm/rev
Range of Imperial thread	4~60T.P.I
Range of Metric thread	0.4~7mm
Top slide travel		80mm
Cross slide travel	160mm
Swiveling angle of turret	± 45°
Movement of tailstock quill	100mm
Taper of tailstock quill	MT3
Motor power	1.1kw/1.5Kw
Packing Size (L*W*H)	Model 880mm 1680*750*1400mm
	Model 1000mm 1850*750*1400mm
Net/Gross weight	Model 880mm 520kg/560kg
	Model 1000mm 560kg/600kg
Loading amount	23pcs/20'
Net/Gross weight	Model 880mm 520/560kg
	Model 1000mm 170/230kg
Packing Size (L*W*H)	Model 880mm 1680*750*1400mm
	Model 1000mm 1850*750*1400mm
