Elecnova DIN-Rail Mounted Three 3 Phase AC Prepaid Smart Energy Meter

US$150.00
1-99 Pieces
US$105.00
100+ Pieces

Basic Info.

Model NO.
DTSY1946A
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter
Electric Equipment
Three-phase Four-wire
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO, CE
Customized
Customized
Measuring Energy Range
0-99999
Accuracy Class
0.5/1s
Output Voltage
230V
Voltage Range
3*230/400V
Input Current
AC 5(80)a
Frequency
50/60 Hz
Rated Voltage
230V
Communication
RS-485/Modbus/2-Wire
Nomal Voltage
3*230/400V
Scope of Working Voltage
0.8un~1.2un
IP Protection
IP54(Panel)/IP20(Case)
Working Temperature
(-25~70)ºC
Storage Temperature
(-30~80)ºC
Relative Humidity
(5~95)%(No Condensation)
Specification
90*144*68mm
Trademark
ELECNOVA
Origin
China
HS Code
9030899090
Production Capacity
30000PCS/Per Month

Packaging & Delivery

Package Size
9.00cm * 14.40cm * 6.80cm
Package Gross Weight
0.500kg

Product Description

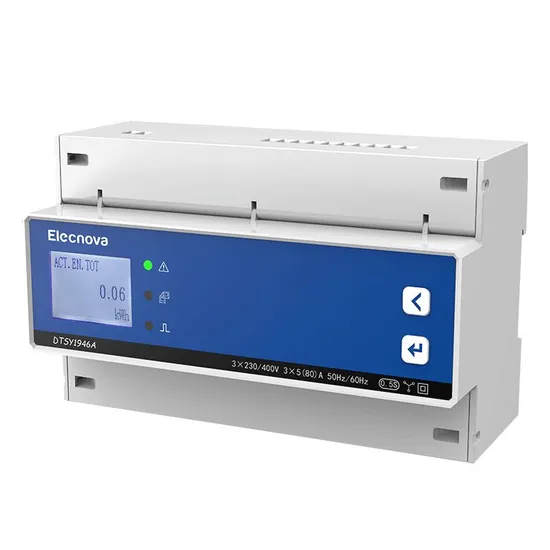

Elecnova DIN-Rail Mounted Three 3 Phase AC Prepaid Smart Energy Meter
Product Description
The DTSY1946A electricity meter is designed by adopting advanced microprocessor and signal processing technology, and it possesses functions as below: whole power quantity measurement, electric energy metering, time-division charging, prepayment, demand quantity statistic, event recording, malignant load identification, fault warning, etc. In addition, it is equipped with switching value input, relay output, pulse output and RS485 communication interface. The instrument inner is provided with magnetic latching relay, with the maximum make-break capacity reaching 80A, applicable to power consumption management of commercial real estate, school and intelligent building.
Technical Specifications

Model DTSY1946A
Electrical Characteristics
Accuracy grade Voltage and current: 0.2%; Power: 0.5%; Frequency: ±0.01Hz
Active electric energy: grade 0.5S; Reactive electric energy: Grade 2
Rated voltage AC 3×230/400V
Input current Direct access AC 5(80)A
Frequency 50/60 Hz
Wiring Mode Three-phase four-wire
Scope of working voltage 0.8Un ~ 1.2Un
Power consumption Power consumption of voltage circuit < 5VA
Power consumption of current circuit < 2VA
Startup current Direct access 0.004Ib
Access via CT 0.002In
Switching Value Input
AC wet contact ON: AC 180~270V
OFF:< AC 100V
Communication Characteristics
RS485 communication interface Modbus-RTU protocol, maximum baud rate: 9,600bps
Multi-functional Output Interface
Electric energy pulse Pulse width: 80ms±20ms
Clock pulse
Tripping Control Output Interface
Contact capacity 3A/250 VAC; 5A/30 VDC
Mechanical Characteristics
Dimension (mm) 90×144×68
IP protection IP54 (panel)/IP20 (case)
Environmental Characteristics
Working temperature (-25~70) ºC
Storage temperature (-30~80) ºC
Relative humidity (5~95) % (no condensation)
Typical Wiring

Application
Company Profile


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
