Nnpc Design LPG 10cbm 5tons 5mt Cylinder Autos Gas Refueling Skid Station for Nigeria

Product Description

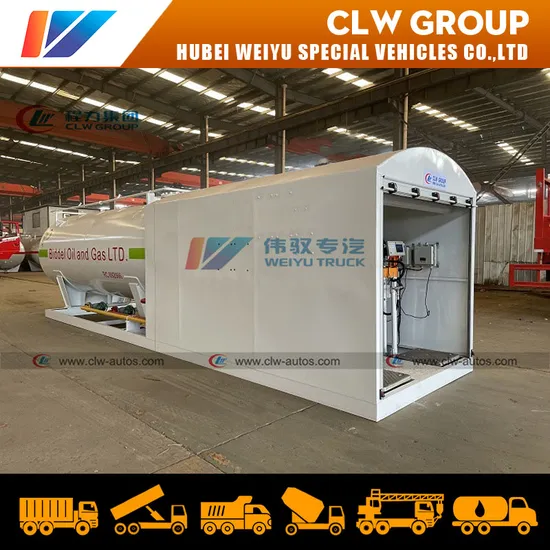

NNPC Design LPG 10cbm 5tons 5mt Cylinder Autos Gas Refueling Skid Station for Nigeria
Product Description
lpg cylinder filling station,also called skid lpg filling station,skid lpg station,lpg gas skid,propane filling plantskid gas plant,lpg skid plant,skid lpg filling plant,mini skid station,lpg bottling station,cylinder refilling station,cylinder filling tank is a completed station with lpg tank,lpg pump and motor,pipeline,valves,cylinder filling machines or scales,filling room,water sprinkler system,electricity control system on steel base.
Our Features:
1.LPG Cylinder Filling station is used for refilling in home use cylinder in different size.
2.One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump
3.Digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling
4.Pump of skid LPG Filling station is optional: Vane Pump ,multi-stage pump,Coro-Flo Pump, Turbine Pump, chinese band,Corken or Blackmer Brand.
5.Motor of LPG Filling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6.Pipeline of LPG Filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves,fire extinguisher for safety
7.Explosive Proof Central Control Panel for whole station system
8.Other Equipment of LPG Filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system

Product Specifications

Specification of 10,000L Skid LPG Filling Station
Volume of Tank	10CBM(10,000liters)
Filling weight(Kg)	5000kg/5tons station
Thickness of Shell (mm)	10 mm
Thickness of Endplate (mm)	12 mm
Tank Diameter (mm)	1800 mm
Dimensions (mm) (length x width x height)	Designed 2 units into 1 40ft container
Material of Tank and Main Pressure Parts	Carbon Steel Q345R
Filling Medium	Liquefied Petroleum Gas ( Propane)
Design Pressure	1.71 MPa
Corrosion Allowance	1 mm
Medium Density	500-590 kg/ cbm
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
Specification of LPG Pump and Motor
Item	Specification
Specification of the Motor
Model	Chinese famous brand
Revolving speed	1470 r/min
Power	5.5 kw
Voltage	380 V
Protection grade	Anti explosive
Specification of the hydrocarbon Pump
Model	YQB15-5
Medium	Liquid petroleum gas
Speed	15 m3/h
Input and Output Diameter	50 mm
Working pressure	2.0 Mpa
Working temperature	-40ºC- 50ºC
Material	carbon steel

Reference Photos
Tank Manufacturering Process
Company Introduction
Certificates
Our Overseas Exhibition
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora for more details

---
