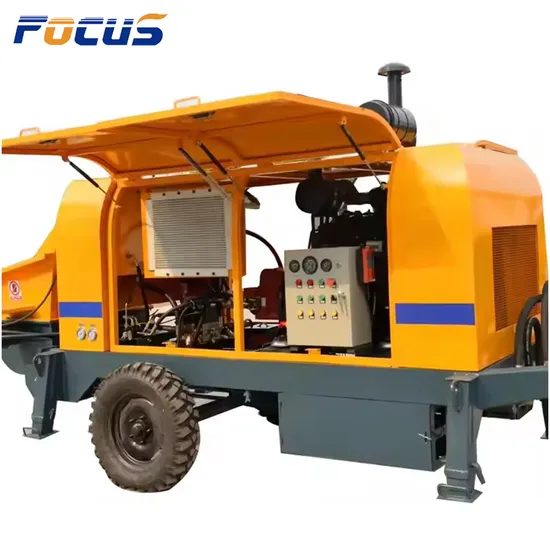

Concrete Mixer Pump with Diesel Engine, Specialized Concrete Mixer and Pump Machines for Construction

US$29,998.00-59,998.00 1 unit (MOQ)

Basic Info.

Model NO.
FS-CP
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
90m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
CE
Condition
New
Color
Customized
Max. Theoretical Delivery Volume
80 Cbm/Hour
Max. Theoretical Delivery Pressure
13 MPa
Max. Vertical Delivery Distance
250 M
Max. Horizontal Delivery Distance
1000m
Capacity of Oil Tank
420L
Capacity of Hopper
600L
Output Port Diameter
150 mm
Motor Power
132 Kw
Rated Speed
1480 R/Min
Max. Oil Pressure of Main System
32MPa
Max. Oil Pressure of Mixing System
16MPa
Concrete Slump Range
80~200mm
Transport Package
Nude Packing, by Container
Specification
6170 x 1930 x 2100mm
Trademark
FOCUS
Origin
China
HS Code
8704210000
Production Capacity
50000 Untis Per Year

Packaging & Delivery

Package Size
630.00cm * 193.00cm * 210.00cm
Package Gross Weight
100.000kg

Product Description

Product Description
Concrete Mixer Pump with Diesel Engine,Specialized Concrete Mixer and Pump Machines For Construction
Concrete trailer pump is a kind of concrete pumping equipment used to pump mixed liquid concrete to the construction site. Usually, the position of the drag pump needs to be fixed before construction, and the pipeline should be laid in advance.According to the pumping capacity, it can be divided into 30 pumps, 40 pumps, 60 pumps, 80 pumps, 90 pumps, etc. As the name suggests, it pumps 30-90 cubic meters per hour. Among them, the small mini drag pumps 30 pumps and 40 pumps are more suitable for small and medium-sized projects such as rural housing construction.
Detailed Photos
Pumping structure of hydraulic concrete pump
1 and 2: main oil cylinder; 3: water tank; 4: reversing device; 5 and 6: concrete cylinder; 7 and 8: concrete piston; 9: hopper; 10: S valve; 11: swing arm; 12 and 13: swing cylinder; 14: outlet
Packaging & Shipping

Product Parameters
Item Unit Parameter
Pumping system Max. theoretical delivery volume CBM/Hour 80
Max. theoretical delivery pressure MPa 13 or 16
Max. delivery frequency times/min 26(low pressure); 16(high pressure)
Max. vertical delivery distance m 250
Max. horizontal delivery distance m 1000
Delivery cylinder specification mm 200 x 1650
Main oil cylinder specification mm 140/90 x 1650
Capacity of oil tank L 420
Capacity of hopper L 600
Feeding height mm 1400
Output port diameter mm 150
Inner diameter of conveying pipe mm 125
Power system Motor power Kw 132
Rated speed r/min 1480
Hydraulic system Type of hydraulic oil circuit Open circuit
Max. oil pressure of main system MPa 32
Max. oil pressure of mixing system MPa 16
Max mixing rotate speed r/min 24
Other parameters Concrete slump range mm 80~200
Allowed max. aggregate diameter mm Pebble50, crushed stone 40
Dimension (length *width * height) mm 6170 x 1930 x 2100
Pulling speed Km/h ≤8
