Automatic Winding Machine Tensioner Servo Tensioner Electronic Tensioner Tension Bar

Product Description

Product Description
Detailed Product Description:
A series electronic tension device has two adjustable tension value, can be switched by the external input signal, and can display the current value of the liquid crystal display, the adjustment is simple and convenient. The series has two types of standard and external control, the standard type through the machine comes with the adjustment knob to control the output tension value; external control type through the external input 0-10V analog voltage to control the output tension value.


Product Parameters

Technical parameters of electronic tensioner for winding machine
Performance parameters of electronic tensioner for winding machine:

Input power supply	24V Dc±10% 10~300mA
Input signal	5~24V DC Max 2~8mA(tension switch)
Output signal	line break alarm switch signal
Operating environment	0~45ºC 40-80%RH

Type selection reference table:

Model	Tension Range (g)	Applied wire diamiter(mm)
A-30	3-30	φ0.02-φ0.06
A-100	10-100	φ0.04-φ0.14
A-200	20-200	φ0.06-φ0.17
A-300	30-350	φ0.10-φ0.25
A-600	60-600	φ0.12-φ0.35
A-1000	100-1000	φ0.15-φ0.45

Detailed Photos

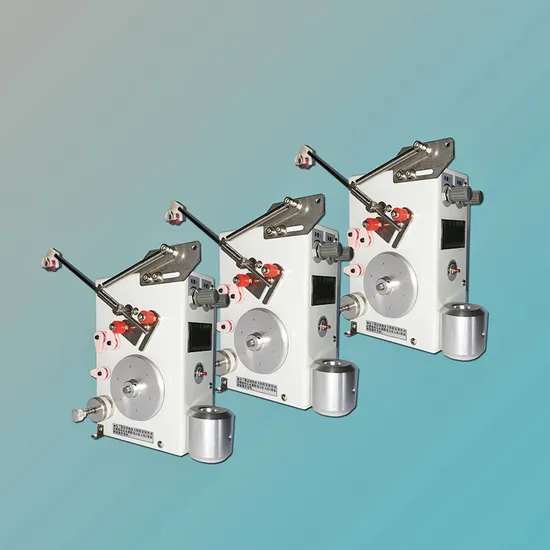

Electronic type tensionerDigital display current valueSuitable for all kinds of automatic winding machine transformer motor inductance and other various coil processing industriesoTension stableHigh control precisionTo adapt to the high-speed windingHave much tension setting function
Packaging & Shipping
Transport:
We support air, sea and land transportation.Our packing is foam + carton. Ensure the safe transportation of products.

Our Advantages
Wudu Company takes "quality first, technology first, service first, customer first" as the purpose, always "pragmatic, scientific management, integrity-based, believe in management and control innovation, constantly improve their own skills" concept.

FAQ
Q1. How soon can I get the sample and quality?
It usually takes seven days to produce the sample. Bulk orders usually take 7-15 days. If something urgent comes up, the delivery time may be postponed

Q2. How about the delivery method?
Goods are usually shipped by air or sea via DHL,UPS,FEDEX, EMS. If you have a warehouse in China, we can also deliver the goods to your warehouse.

---
