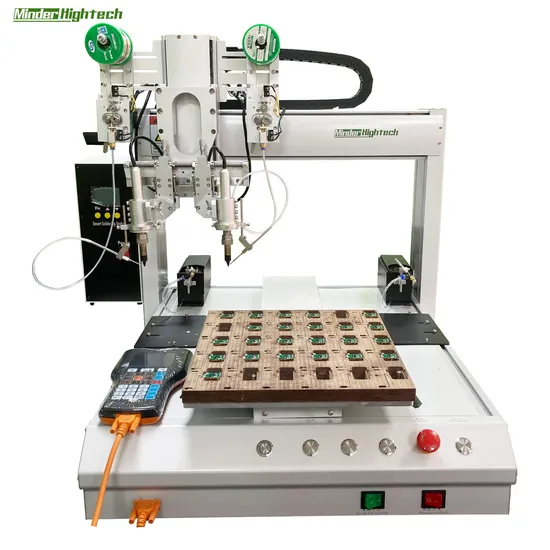

Desktop 4 Axis Soldering Machine Auto Robot Double Head Soldering Robot

Product Description

Assembly solution
----Soldering robot
----Desktop Robotic Screw Fastening& Dispenser Robot
Soldering robot can soldering tin full automatically and better soldering quality than manual soldering.
The rotatable automatic soldering machine is multi-functional, it can adjust the welding angle, direction and set the solder joints at will, control the amount of tin in and out, control the size of the solder joints, and better ensure the welding process requirements of customers' products. In addition to the ordinary XYZ axis, the machine also has an independent stepper motor controlled tin feeding axis, and a rotating axis that can rotate 360° in all directions. We call it the R axis. Its main function is it It can effectively avoid the influence of high components on various PCB boards and objects such as chips, wires or terminals on the moving space of the circuit board, and can adjust the welding angle, tin tube and needle tip at will. The tin wire can be accurately sent to the soldering iron tip to match the customer's product, and the tin surface can be properly melted to avoid tin stuck due to various reasons during the soldering process.
Applications
Automatically soldering for Auto Electronics, digital electronics, LCD, PCB, connector, RJ/45, FFC, FPCB, computer board, cable, speaker, wires, HDMI, LED, toy etc.
Feature
Desktop type, can be placed on the production line. Optional Full english marked machine body, to be international application. Double Y axis type, automatic working alternatively, saving the time of placing object. Perfect soldering program, with spot/line/circle soldering function. Can set the length of the Tin, pre-heat time, soldering time, height of backward.etc parameter. With auto cleaning soldering tip function. Interface both English and Chinese available. Fixture and tooling available.
Specification
Single head single Y platform Single head double Y platform

Model	MD-DH-T3311	MD-DH-T4411	MD-DH-T5511	MD-DH-T43311	MD-DH-T44411	MD-DH-T53311	MD-DH-T54411	MD-DH-T64411
Stroke X	300mm	400mm	500mm	400mm	400mm	500mm	500mm	600mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm	300mm	400mm	400mm
Stroke Y2	no	no	no	300mm	400mm	300mm	400mm	400mm
Stroke Z	100mm	100mm	100mm	100mm	100mm	100mm	100mm	100mm
Rotary R axis	with R axis (optional no R axis)
Rated speed	500mm/s (X-Y-Z) ,Max:1000mm/s
Soldering Tip	Default 1 PC (optional 2 PCS)
Tin thickness	0.3-1.6mm
Temperature	normal-500ºC
Heating	150w, 5 second to 300ºC
Drive	Precision stepping motor/servo motor+synchronous belt/ball screw
Motion mode	Point to point; line; circle
Positioning Accuracy	+- 0.02(mm)
Program	Control Teaching Box/PC
External	RS232
Program storage	100groups/1000points per group
Power	2*220V50Hz
Air	0.5Mpa
Dimension L	580mm	580mm	780mm	580mm	680mm	580mm	680mm	780mm
Dimension W	520mm	620mm	720mm	520mm	620mm	720mm	720mm	820mm
Dimension H	603mm	603mm	603mm	603mm	603mm	603mm	603mm	603mm
Weight	60kg	70kg	80kg	75kg	80kg	80kg	85kg	90kg

Double head single Y platform Double head double Y platform

Model	MD-HX-331S	MD-HX- 441S	MD-HX-551S	MD-HX-5331S	MD-HX-5441S	MD-HX-6441S
Stroke X	300mm	400mm	500mm	400mm	400mm	500mm
Stroke Y1	300mm	400mm	500mm	300mm	400mm	300mm
Stroke Y2	no	no	no	300mm	400mm	300mm
Stroke Z	100mm	100mm	100mm	100mm	100mm	100mm
Rotary R axis	No R axis

For more details and optionals, please talk to us, we can provide a super solution.

---
