High Efficiency Rapid Used Second Hand Mitsubishi CO2 Laser Cutting Machine Ml4020ex-35CF Retrofit to Fiber Laser Cutting Machine

Product Description

High Efficiency Rapid Used Second Hand Mitsubishi CO2 Laser Cutting Machine ML4020EX-35CF Retrofit to Fiber Laser Cutting Machine
Mitsubishi CO2 Laser Cutting Machine Upgrade to Fiber Laser Cutting Machine
Modernization for Mitsubishi CO2 Laser Cutting Machine

Fiber Laser Source + Fiber Laser Head + Water Chiller + Controller Box Increase Laser Power, Increase Cutting Speed, Reduce Use Cost, Reduce Maintenance Cost.

Both 2 Dimension & 3 Dimension Mitsubishi CO2 Laser Machine can upgrade to
Fiber Laser Cutting Machine.
The Mitsubishi CO2 laser cutting machine model numbers are as follows:

Mitsubishi 2D CO2 Laser Machine Models For Metal Sheet Cutting	Mitsubishi 3D 5 Axis CO2 Laser Machine Models For 3D 5 Axis Cutting
ML3015LVP-35CF ML3015LVP-30CF ML3015LVP-45CF ML3015EX-35CF ML3015EX-45CF ML3015HV2-20XF ML3015HV2-40CF ML4020LVP-35CF ML4020LVP-30CF ML4020LVP-45CF ML4020EX-35CF ML4020EX-45CF ML4020HV2-20XF ML4020HV2-40CF	ML3122VZ1-3020D ML3122VZ1-20CF ML2512VZ1-20CF ML2512VZ1-3020D ML3122VZ10-20CF ML3122VZ10-30CF ML3122VZ10-20XF ML3122VZ20-20CF ML3122VZ20-30CF ML3122VZ20-20XF

Wuhan Raylas can make the following Retrofit / Upgrade / Modernization projects:
Amad CO2 Laser Upgrade to Fiber Laser Cutting Machine
Bystar CO2 Laser Upgrade to Fiber Laser Cutting Machine
Mitsubishi CO2 Laser Upgrade to Fiber Laser Cutting Machine
LVD CO2 Laser Upgrade to Fiber Laser Cutting Machine
Prima CO2 Laser Upgrade to Fiber Laser Cutting Machine
JFY CO2 Laser Upgrade to Fiber Laser Cutting Machine
We can upgrade Amada / Bystar/ Mitsubishi / LVD / Prima / JFY CO2 Laser Cutting Machine to 3000W or 6000W or 12000W Fiber Laser Cutting Machines
Mitsubishi CO2 Laser Cutting Machine Update
Do not change the machine structure.
Do not replace the drive system.
The CNC System remains the same.
The Operation Mode remains the same .
Customers need to purchase the following main parts for upgrade:
Fiber Laser Source + Fiber Laser Head + Water Chiller + Controller Box
Use Fiber Laser Source to replace CO2 Laser Source;
Use Fiber Laser Cutting Head to replace CO2 Laser Cutting Head;
Use Fiber Laser Water Chiller to replace CO2 Laser Water Chiller;
Add one Controller Box to transfer signals from Fanuc System to Fiber Laser Source, Fiber Laser Head and Water Chiller;
Drag chains and other accessorie.

Detailed Information with Specifications
Quantity	Description				Brand
One set	6000W Laser Source				Raycus 6000W
	Raytools BS06K Laser Head				Raytools
	6000W Water Chiller				Tongfei / Hanli China
	Control Box for Laser Source and Mitsubishi CNC				RAYLAS
	Necessary Parts				RAYLAS

Terms & Conditions:
Warranty:	Two years for laser source; one year for laser head and chiller.
Payment Term:	30% T/T payment in advance for order confirmation, 70% T/T payment before shipment.
Delivery Time:	After 7 working days upon receipt of first payment, parts will be ready for delivery.
Packing Standard:	Comply With The Export Packing Standard
Installation and Training:	We will send one engineer to your country for machine upgrade and training for 7-10 days.

Mitsubishi CO2 Laser Cutting Machine Upgrade to 6000W Fiber Laser Cutting Machine:
New Fiber Laser Source + Fiber Laser Head + Water Chiller
Old CO2 Laser Source + CO2 Laser Head + Old Water Chiller

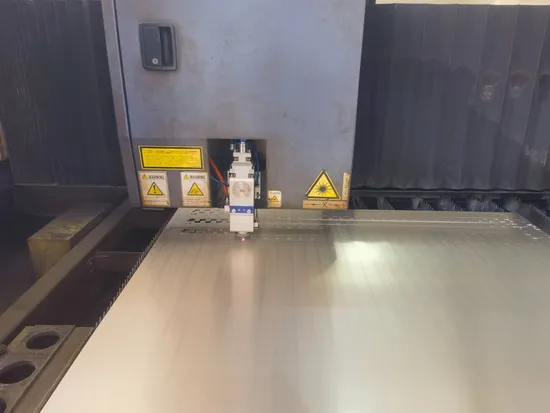

Mitsubishi CO2 Laser Cutting Machine Upgraded in clients' factory:
LVP Seires Mitsubishi CO2 Laser Machines
Upgrade to Fiber Laser Cutting Machine
EX Seires Mitsubishi CO2 Laser Machines
Upgrade to Fiber Laser Cutting Machine
VZ Seires Mitsubishi CO2 Laser Machines
Upgrade to Fiber Laser Cutting Machine
BystarCO2 Laser Cutting Machine Upgrade to 6000W Fiber Laser Cutting Machine:
Main Parts that we need to change during upgrade:
Amada CO2 Laser Cutting Machine LCG3015 Upgrade to 6000W Fiber Laser Cutting Machine:
Main Parts that we need to change during upgrade:
Mitsubishi CO2 Laser Upgrade to Fiber Laser Cutting Machine
Amada CO2 Laser Upgrade to Fiber Laser Cutting Machine
BystarCO2 Laser Upgrade to Fiber Laser Cutting Machine
Cutting Sample:
Amada CO2 Laser Upgraded to Fiber Laser Cutting Machine in Client's Factory:
BystarCO2 Laser Upgraded to Fiber Laser Cutting Machine in Client's Factory:
FAQ
1. Which kinds of CO2 laser cutting machine can upgrade to Fiber laser cutting machine?
-We can upgrade Amada / Bystar/ Mitsubishi / LVD / Prima / JFY CO2 Laser Cutting Machine to Fiber Laser Cutting Machine.
2. What do we need to purchase if we want to upgrade our CO2 laser machine to Fiber laser machine?
-You need to purchase fiber laser source, laser head, water chiller, controller box, etc.
3. How much fiber laser power can we upgrade our CO2 laser machine to?
-We can help you to upgrade your CO2 laser cutting machine to 3KW or 6KW or 12KW fiber laser cutting machine, according to your requirements.
4. Will your engineer come to our factory to make the upgrade?
-Yes, our engineer can fly to your factory to make the installation and training.
If you want to know more about Amada / Bystar/ Mitsubishi / LVD / Prima CO2 Laser Upgrade to Fiber Laser Cutting Machine, please feel free to contact us, we will provide you the most suitable solutions.

---
