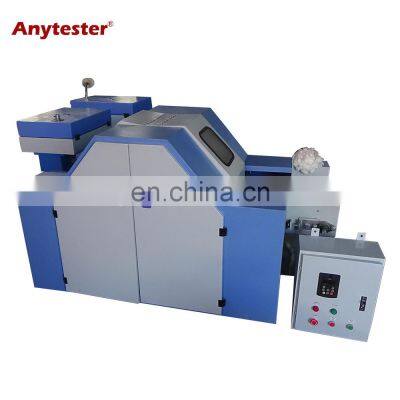

AT202 Laboratory Carding Machine is part of the mini spinning system. It's mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Detailed Images
Model
| AT202
|
Feeding width
| 400mm
|
Working width
| 360mm
|
Cylinder diameter
| Φ450mm
|
Doffer diameter
| Φ220mm
|
Licker-in diameter
| Φ165mm
|
Working roll diameter
| Φ110mm
|
Wipe roll diameter
| Φ90mm
|
Speed
| Adjustable (Frequency converter control)
|
Max. fiber length
| about 100mm
|
Villus bucket power
| 1.5KW
|
Output capacity
| 5~10kg/h
|
Maine machine power
| AC220V/380V, 50/60Hz, 2.2KW
|
Dimension
| 1350mm*950mm*900mm (main machine)
|
900mm*900mm*1200mm (villus bucket)
|
Weight
| Approx. 800kg
|
★ It is driven by a 2.2kw motor, equipped with a electric control cabinet and frequency converter to adjust the running speed.
★ With full-closed protective cover.
★ Two rollers feeding.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web
★ It can produce web or sliver according to customer's selection.
★ Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
