Sn30Zn70 High Efficiency metal spray wire for Film capacitors Sample Customization

Product Description

Zinc Tin Alloy wire is a Metal spraying material. It is a kind of electronic welding material specialized for metal spraying of the end face of metalized film capacitor. Since the official implementation of EU "RoHS" instruction on July 1st, 2006, leaded metal spraying materials were forbidden in a short period of time. The performance and quality of the lead-free metal spraying materials of Tianlong are the same as or superior to the similar overseas products. The capacitors produced by the company have been widely used in high-speed rail, automobiles, new energy, and aerospace fields.

Sn30Zn70 Tin alloy wire is an effective and economical wire for metal spraying of the end face of metalized film capacitor.
Zinc Tin alloy wire is the best film capacitor metal spraying material.
The surface of the Zinc Tin wire is smooth and bright, with no broken wires, no greasy dirty and burrs, no scratches and scars, no jam in the process of use.
The Zinc Tin wire conforms to the requirements of EU ROHS, REACH, and relevant domestic laws regulations for environmental protection.
Product code:HYSnZn
Chemical composition:

Item	Main elements (%)		Impurities (≤)%
	Sn	Zn	Pb	Cd	Fe	TTL
HYSnZn10	89-91	REMAINING	0.02	0.002	0.012	0.05
HYSnZn15	84-86	REMAINING
HYSnZn20	79-81	REMAINING
HYSnZn30	69-71	REMAINING
HYSnZn40	59-61	REMAINING
HYSnZn50	48-52	REMAINING
HYSnZn53	45-49	REMAINING
HYSnZn60	38-42	REMAINING
HYSnZn70	28-32	REMAINING
HYSnZn75	23-27	REMAINING
HYSnZn80	18-22	REMAINING
HYSnZn90	8-12	REMAINING

Mechanical characteristics:

Item	Specific Gravity (g/cm3)	Melting Range (ºC)	Volume Resistivity (mΩ·mm2/m) 20ºC	Tensile Strength Rm (N/mm2)	Elongation After Fracture A 100mm(%)
HYSnZn10	7.0-7.3	198-216	≤ 115	≥ 60	≥ 20
HYSnZn15		198-250	≤ 105
HYSnZn20		198-285	≤ 100
HYSnZn30		198-325	≤ 95
HYSnZn40		198-345	≤ 90
HYSnZn50		198-355	≤ 85
HYSnZn53		198-362	≤ 83
HYSnZn60		198-375	≤ 80
HYSnZn70		198-385	≤ 78
HYSnZn75		198-390	≤ 76
HYSnZn80		198-395	≤ 74
HYSnZn90		198-405	≤ 72

Diameter: 1.0mm≤Ф≤3.20mm Packaging & Shipping

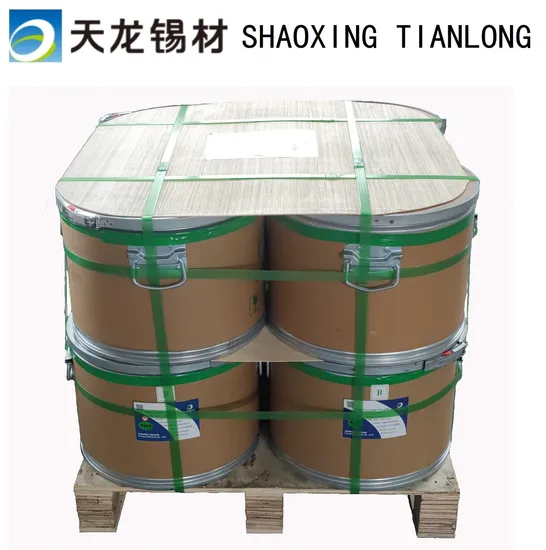

Product packing:

Hard paper drum	100-150 kg	outer diameter 550 mm, inner diameter300mm, variable height
Hard paper drum	20-50 kg	outer diameter 400 mm, inner diameter190mm. variable height
Plastic spool	15 kg	flange300mm, width100mm, center hole:55mm
Plastic spool	15 kg	flange270mm, width103mm, center hole:55mm
bundle	20-40 kg

Pallet will be used, such as 1100mmX1100mm, 1200mmX800mm, 1000mmX1000mm, 800mmX800mm.
Various products of Zinc Tin Wire, providing product images and basic parameters with each Wire; We are a professional Chinese manufacturer of Zinc Tin Wire, and look forward to your cooperation!

---
