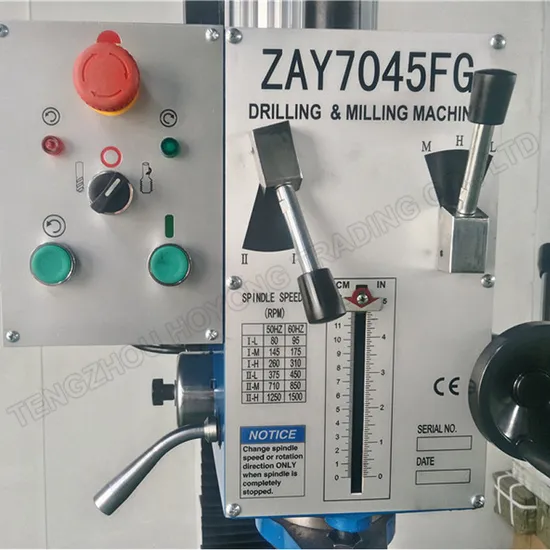

Small High Quality Milling Drilling Machine Tools Type Zay7025fg Zay7032fg Zay7040fg Zay7045fg

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
25mm
Taper
Mt3
Motor
0.37kw
End Milling Capacity
20mm
Ace Milling Capacity
63mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month

Product Description


DRILLING MILLING MACHINE FEATURES:
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
SPECIFICATIONS:
ITEM ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG
Max Face mill capacity 25mm 32mm 40mm 45mm
Max End mill capacity 63mm 63mm 80mm 80mm
End milling capacity 20mm 20mm 32mm 32mm
Max.distance from spindle nose to table 445mm 450mm 450mm 450mm
Min.distance from spindle axis to column 203mm 260mm 260mm 260mm
Spindle travel 85mm 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 6 6 6 6
Range of spindle speed 50Hz 95-1420 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 115-1700 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Swivel angle of headstock(perpendicularly) 90° 90° 90° 90°
Table size 520×160mm 800×240mm 800×240mm 800×240mm
Forward and backward travel of table 140mm 175mm 175mm 175mm
Left and right travel of table 290mm 500mm 500mm 500mm
Motor Power 0.37KW 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
Net weight/gross weight 180kg/240kg 320kg/370kg 323kg/373kg 325kg/375kg
Packing size 680×750×1000mm 770×880×1160mm 770×880×1160mm 770×880×1160mm
