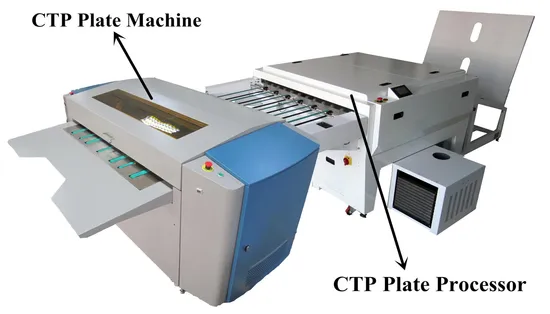

Factory Price Flexo CTP Plate Processor Machine CTP Plate Making Machine

Product Description

Product Description

Product Name	Factory Price Flexo CTP Plate Processor Machine CTP Plate Making Machine
Model	OR-CTP 01
Max plate size	670*645mm
Image size	660*630mm
Quantity of light	32ch
Resolution	2540dpi
Plate thickness	0.13-2.5mm
Type of laser	High Power Fiber Laser Source
Applied Plate	Digital Flexo resln plate,Thermal CTP Plate
Data Format	1-Btt TIFF
Output speed	Thermal PS plate more than 20P/h(670*645mm)
Dimensions	1060*1600*1100mm
Weight	760KG
Power	AC220V 30A 50Hz/60Hz
Environment	18-26 degree.Relative humidity, non condensing

CTP Plate Processor:

Model	OR-CTP
The maximum plate size	670*645mm
The plate thickness	0.15-0.4mm
Time adjustment range	10-50s
Working speed	400-1380mm/min
Brush speed	40-120r/min
Temperature control range	18 to 40 ºC
Drying temperature control range	30 to 60 ºC
The adjustment range of the liquid	0-999ml 0-999ml
The capacity of the developing medicine tank	about 40L
Wash water	10-15l/min
Volume (length x width x height)	2380 x 1300 x 1050mm
Weight	300 kg
Power supply	220V 50HZ
Maximum power	3500w

OVERALL PERFORMANCE CTP series printing machine is our company through the introduction,digestion and absorption of foreign advanced technology.
The new design of the new generation of the device, features as follows:
A processing speed digitization, but stepless speed adjustment.
B submerged development, development time and development temperature adjustable.
C development has a circulating filtration system.
D microprocessor control system control time, solution, oven temperature.
E glue automatic circulation system, can control the glue or not.
F automatic cleaning and gluing roller, easy maintenance.
G province water installation, need not to consume water all the way.
H looks beautiful, easy to operate

---
