Industrial Conveyor Belt Digital X Ray Scanner System Machine Price for Food Made in China

Product Description

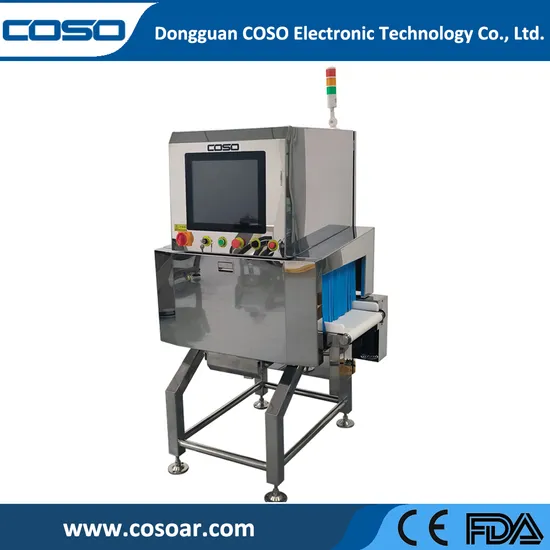

Industrial conveyor belt digital x ray inspection machine price for food made in China
X-ray series foreign matter scanner machine can be applied in food, pharmaceutical, chemical industry to detect metals and nonmetals.X-ray detector scanner not only can precisely identifies foreign matters belonging to all kinds of products, such as metal, bone, glass, china, stone, hard rubber, hard plastic etc, but also can provide excellent detection of product integrity, identify defects of product etc
X-ray series foreign matter scanner X-ray series foreign matter scanner machine is a new kind of machine that based on the newest x-ray imaging and image processing technology, which completely accords with European standard. Application:It can be applied in food, pharmaceutical, chemical industry to detect metals and nonmetals. X-ray detector scanner not only can precisely identifies foreign matters belonging to all kinds of products, such as metal, bone, glass, china, stone, hard rubber, hard plastic etc, but also can provide excellent detection of product integrity, identify defects of product etc. Main Functions: 1. Improved reporting function: support reporting of product detection, operating detection, maintenance statistics, and alarm statistics etc; support the statement exported to the Excel, can connect with SPC system; can create all kinds of reporting according to different conditions. 2. Dynamic image monitoring function: support device alarm system, and can connect with upper PEMA system. Totally simulate actual dynamic image monitoring, so any breakdown of device are very clear. 3. Automatic preservation: the pictures of detection results can be preserved automatically, which is easy for users to look up 4. Improved software function: advanced shielding function, can provide best sensitivity of detection; have function of detection of defects. Features: 1.High and reliable security ·X-ray's leakage rate is less than 1μSv/hour, which accords with American FDA standard and CE standard. ·Radiation produced to food is fairly less than 1Gy, so it is very safe. ·Improved safety construction can effectively reduce leaking accident because of users' wrong operation. 2.Friendly human-machine interaction: · High resolution 17 "LCD full color and touch display is easy to achieve human-machine interaction. ·Automatically setting detection parameter, greatly simplifies operation procedures. ·Automatically preserving detection pictures. 3.Convenient and simple cleaning and maintenance: · Simple disassembly is easy for cleaning. · The waterproof level of detection tunnel is IP66, and other constructions accord with IP54, so it can be cleaned with water. 4.Strong ability to adapt environment · Equip German industrial air conditioning; environment temperature is -10ºC--40ºC, which can help food keep fresh in long-term bad production environment.(whether high temperature or low temperature) ·Full airtight case is waterproof and dustproof. ·Equip high-property dehumidifer, which can bear humidity of 90%. 5.High configuration and stability · The main components of device come from international first-class brand, which can guarantee stability of machine and its service life.
Specification

Model	XS3019	XS4025	XS6035
X-ray source	VJX IXS100 150W 80kV	VJX IXS100 150W 80kV	VJX IXS100 210w 80kV
Detecting width	220mm	320mm	520mm
Detecting Height	130mm	170mm	240mm
Best sensitivity	Stainless steel ball: Φ 0.4 mm Glass ball: Φ 1.0 mm; Ceramic ball: Φ 1.0 mm
Conveying speed	30-70m/min.
Screen	17 Inches Full Color Touch Screen
Detector	DT X-Scan C 0.4 mm
Interface for data	DT X-Scan C 0.4 mm
Working environment	Temperature: -10ºC-40ºC (Cooling: industrial air conditioning), Humidity: 30%-90%,No frost (humidity control: dehumidifier)
Image management	Image saving/printing/analysis
Operate System	Win 7
X-ray leakage	<1μSv/hour
Protective mode	Protective soft curtain, removable.
Alarm	Sound and light alarm, stop, and rejection are optional
Power supply	AC220V ±10% 50/60Hz, 1.5kVA Max
Protection level	IP65
Material	SUS304
Applicable products	Packing or without packing product
Affordable weight on conveyor	Standard: Max 5 Kg on conveyor

cosoar.en.made-in-china.com
cosoar.en.made-in-china.com
FAQ
1. How long is your delivery time?
15-20 working days after receiving your payment.
2. Do you accept OEM?
Yes, we accept OEM.
3. What's your main product?
Metal detector, metal separator, needle detector, checkweigher, X ray machine.
4. How is your after-sales service?
Engineers are available to provide after-sales service overseas in order to help customers solve technical problems.
5. Can you make products as customer's needs?
Yes, we can. All of our products can be customized according to customer's requirements.
6. Why choose us?
A. We have more than 10 years experience in this area.
B. The product design is humanized, intelligent, modular; The products are excellent performance, simple operation and maintenance, low cost.
C. Our excellent customers spread all over the world, and our products are chosen by many enterprises of Top 500.
7. Are you manufacturer?
Yes, we are direct manufacturer. We have our own factory in Dongguan Guangdong, China. Welcome to our factory to visit.

---
