Max Opening 114 mm Air Hose Crimper Range 1/4′′-2′′hydraulic Hose Making Machine

Product Description

Max opening 114 mm air hose crimper range 1/4''-2''hydraulic hose making machine

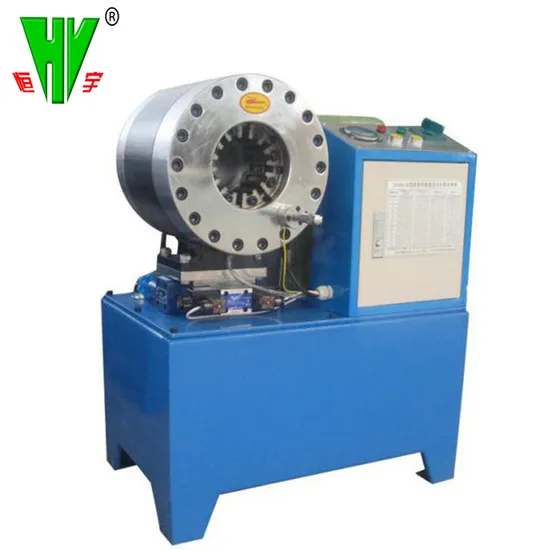

Model DX68 hose crimping machine is mainly used for crimping processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

Specification
Model number:	DX68
Crimping range(inch):	Φ1/4''---2''
Max. crimping force:	500T/5000KN
Crimping efficiency:	200 pcs/H
Max opening:	114 mm
Opening:	±30mm
Rated pressure:	31.5 MPa
Motor Power/voltage:	380V/3KW or220V/2.2KW
Motor Flow:	2.5L
Crimping period:	12s (380V) or 15s (220V)
Crimping precision:	0.01 mm
Die qty:	10sets
Die NO.:	15.19.23.26: Length-60 mm 31.36.41: Length-70 mm 47.55.60: Length-80 mm
Net Weight:	245 kg
Gross weight:	260 kg
Machine size:	730x480x740 mm
Packing size:	800x530x870 mm

Our company Hebei Hengyu Rubber Product Group Co., Ltd, founded in 1999, is a manufacturer dedicated to the design, production, and distribution of all types of flexible hoses, fittings, adapters, quick couplings and assembly machines with excellent quality standard.
After 20 years of development, today the plants of Hengyu Group has expended to occupy an area of 260,000 square meters, owns over 300 well-trained staffs and over 10 million meters production capacity per year, in order to meet high demand of both local and oversea market. Until now, Hengyu Group has been awarded as 'The well-known trademark enterprises" and "The best top 10 enterprises" in China.
Our product range
1. HOSE SAE 100 R1AT, R2AT, R4, R5, R6, R7, R8, R12, R13, R14,R15, R16,R17, R19
2. HOSE DIN EN 853 1SN, 2SN,2ST; EN 856 4SP, 4SH; EN 857 1SC, 2SC
3. PTFE hose
4. Thermoplastic hose
5. Jack hose
7. Pilot line hose
8. Washer pressure hose, sewer hose, water blast hose
9. Rotary Drilling and Vibrator Hoses, Cement Hoses, and Mud Delivery Hoses
10. Air/Water/Oil Suction & Discharge Rubber Hose
11 . Air conditioning hose
12. Steam hose
13. Chemical hose, Food hose
14. Welding hose, LPG hose
15. Tank Truck hose
16. Sandblast Hose, Concrete pump hose
17. Fiber glass fire sleeve (Pyrojacket), Plastic Spiral Guard for Hose
18. Ferrules, fittings and adapters, with materials of carbon steel and stainless steel
19. Quick couplings with materials of carbon steel, stainless steel and copper
20. Crimping machine,Skiving machine, Cutting machine
FAQ
Q1. Are your company a manufacturer or trading company?
A: Our company is a manufacturing company.
Q2. Can you produce products with my own brand?
A: Yes,we can offer OEM services.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q4.What is your port of loading?
A: Xingang port or Qingdao port
Q5. What is your terms of packing?
A: PP film wrapped-wooden case
Q6. How about your delivery time?
A: It usually takes 15 to 30 days,which generally depends on the quantity of your order and our storage.

---
