Most Popular 3.5 Cbm Self Loading Concrete Pan Mixer for Sale

Product Description

Overview
Quick Details
Condition: New Place of Origin: Shandong, China
Brand Name: HAIQIN Motor Power: 2.2kw
Mixing Power: 85 kW Charging Capacity: 5300 L
Reclaiming capacity: 3500 L Speed of Mixing Drum: 13r/min
Water Supply Mode: Hydraulic Driven Water Pump Working Cycle Period: 10-15min
Discharge Way: Reverse-Rotation Outline Dimension: 7800 x 2600 x 3300 mm
Product name: diagram of concrete cement mixer truck Geometric Volume: 5300 L
Concrete Output: 3500 L/ batch Diesel Engine Brand: YUCHAI ( Cummins Optional)
Weight: 7500 kg Model Number: HQ3500R
Packaging & Delivery
Selling Units: Single item
Single package size: 1100X230X250 cm
Single gross weight:7500.000 kg
Port: QINGDAO, CHINA
Lead Time:

Quantity(Sets)	1 - 1	2 - 5	6 - 50	>50
Est. Time(days)	7	10	30	To be negotiated

1. Product Description

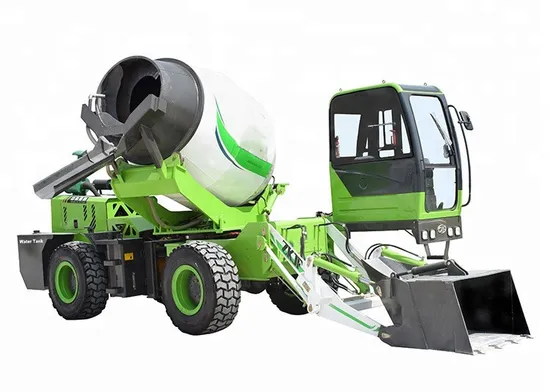

Product Application for HQ3500R self loading concrete mixer truck
HQ3500R Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete
mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with
powerful YUCHAI,85 kW Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the operator
can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The mixing
drum and cabin could slew together through 270° for high discharge over 2 m on the four sides of the vehicle.
The the Geometric Volume of Mixing Drum is 5.2m³. The concrete output is 3.5m3 per Batch, 14 m3 per Hour. The wide cabin
windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity
self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 112m³ of concrete)
and reliability. Thanks to these characteristics, it is the ideal solution for rental purposes and for maintenance operations.
2. Product parameters

Specifications for HQ3500R self loading concrete mixer
Mixing Drum	Mixing Volume	3500 L
	Geometric Volume	5300 L
	Concrete Output	3500 L/ batch , 4 Batches/ hr
	Inclination Angle	16°
	Max. Slewing Angle	270°
	Rotating Speed	0~21 rpm
	Body /Bottom Thickness	4 mm/6 mm(Q345B)
	Overall Size	Φ1700x 3210
Chute	Max. Slewing Angle	90°
	Tilting Method	Mechanically
	Length	450mm +1200 mm (2 Sections)
Engine	Brand	YUCHAI ( Cummins Optional)
	Model	YCD4J22G
	Rated Power/Speed	116 HP /2400 rpm
	Max.Torque/ Speed	390 N.m/2800 rpm
	Bore x Stroke	105 mm x125 mm
	Displacement	4.33 L
	Type	4-Cylinder,In-line, Turbo Charged, Water-cooled
	Emission Standard	Euro II
Hydraulic System	Reducer Model	HJ80-43
	Hydraulic Pump Displacement	50/32 mL/r
	Hydraulic Motor Displacement	160 mL/ r
Water Supply System	Water Tank Volume	2 x 280 L
	Water Supply Mode	Self-contained, Hydraulic Driven water pump
Chassis	Structure	Articulated Structure
	Drive Type	4 X 4
	Transmission	2 Forward +2 Reverse Shift (Low+ High Speed)
	Torque converter	YJ280 ( Split Type)
	Gearbox Mode	Counter Shaft, Power-shift
	Wheelbase	2800 mm
	Tread	1700 mm
	Loading Shovel Capacity	600 L
	Brake Type	Air Brake
	Tyre Size	16/70-20
Vehicle	Drum and Shovel Control	By Joystick
	Driver's Cab	Air-conditioner Inside
	Max. Drive Speed	30 km/h
	Grade Ability	30 %
	Mini Turning Radius	5300 mm
	Max. Payload	8,500 kg
	Operating Weight	7,500 kg
	Overall Size	7800 x 2700 x 3300 mm

3. Main Features
1) China TOP Brand WEICHAI Diesel Engine as standard Power, Cummins Engine is Optional
2) The Integrated Structure Chassis and Four- Wheel Steering
3) Full Hydraulic Brake System
4) Eight PCS of All Steel Radial Tyres support all vehicle
5) The mixing unit could slew hydraulically up to 290°
6) Centralized Lubricating System for Easy Maintenance
7) Closed Circuit Hydraulic Rotation System
8) Spacious Driver's Cab with Italian Weighing System, A/C and Fire Extinguisher inside China TOP Brand YUCHAI Diesel Engine as standard Power, Cummins Engine is Optional
The CMT3500R Self Loading Concrete Mixer is driven by YUCHAI ,85 kW (115 HP), Turbo-charged , Water-cooled Diesel
Engine. The YUCHAI Diesel Engine is China Top Brand, which is featured by High Reliablity and Low Fuel Comsumption.
The CUMMINS (130 HP) Engine is availabe upon request.
Articulated Structure Chassis Design
The Chassis of this machine is articulated structure, which could make the machine more flexible and get shorter turning radius
than that with integrated chassis
Mixing Drum could slew hydraulically up to 270°
The mixing Drum could slew hydraulically up to 270° for high discharge over 2 m on the four sides of the vehicle. One set of
1.2 m chute is standard equipment. The extra prolonged chute is availabe upon request.
Hydraulic Driven Water Pump
The self-priming water pump is driven by hydraulic pump, which is much faster than electric motor driven water pump.The
max. suction is 250 Liter /minute.
Off Road Industrial Steel Wire Line Tyre
The machine is equipped with Off Road Industrial Steel Wire Line Tyre with model of 16/70-20, PR14. The drive means is
4x4 .The steel wire line tyre is much more stronger nylon tyre, which could ensure the machine work safe on muddy and
bumpy road.
4. Packaging & Delivery
5. Working Case in the foreign countries of Haiqin Machinery
6. Certificate of Haiqin Machinery
7. More product categories of HaiQin Machinery
8. Warranty and Service.
HAIQIN machine has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!
