Reliable 180 Rotate Wireless Sensor for Safety Monitoring

Product Description

Product Description
Product Descriptions

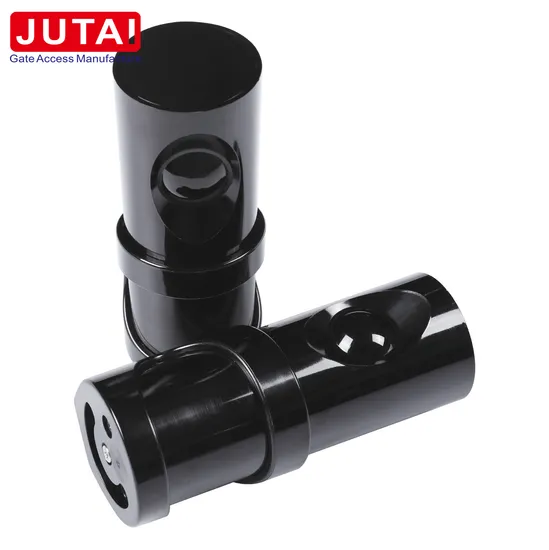

The IS-30R is an external rotation infrared gate safety beam equipped with a wireless transmitter. There is no need to tunnel under the driveway. It features 180 degrees of external rotation, enabling simple rotational alignment. This makes it more convenient and safe for door automation.
Function

180-Degree External Rotation Align: The IS-30R's most remarkable feature is its 180-degree external rotation. You can adjust it within 180 degrees only. This makes installation easy and is more convenient for some special project sites. Low Power Consumption: The wireless transmitter photocell of the IS-30R requires only two AA batteries (not included in the kit) for two years of reliable operation. The low current draw throughout the system results in greater efficiency and a longer battery life. Thus, you will have reliable automated gate safety for years to come. Highly Cost-Effective: Safety is indeed priceless. However, it's good to know that the IS-30R photocells offer a highly cost-effective detection solution. With these photocells installed, your gate won't damage your car and won't be a financial burden either. Feature Specification

Power Supply	12-24VAC, 12-30VDC
Transmitter	2 x AAA alkaline batteries (Supplied)
Receiver	12-24VAC, 12-30VDC
Rotation Angle	180 Degree
Receiver Power Consumption	30mA @ 12VDC
Transmitter Battery Life	Minimum 2 years
Battery Low indication	Audible Beep
Specified Operating Distance	30m
Alignment	Automatic-im'@ 10m (circular area - assumes parallel surface)
Output Contact	Fail-safe, N/C and N/O, potential free contact
Output Contact Rating	3A @ 30V DC Non-inductive
Operating Temperature	-20°C - +60°C
Operating Humidity	0 - 90% Non-condensing
Degree of Protection	IP66
Housing Material	PC (UV)
Size	113 x 46.79 x 47.72mm

Installation
Applications
Connection Diagram
Certificate
Packing/Shipping
About us

---
