New 4 Axis CNC Milling Machine Vmc 850 Vertical CNC Milling Machine Price

Product Description

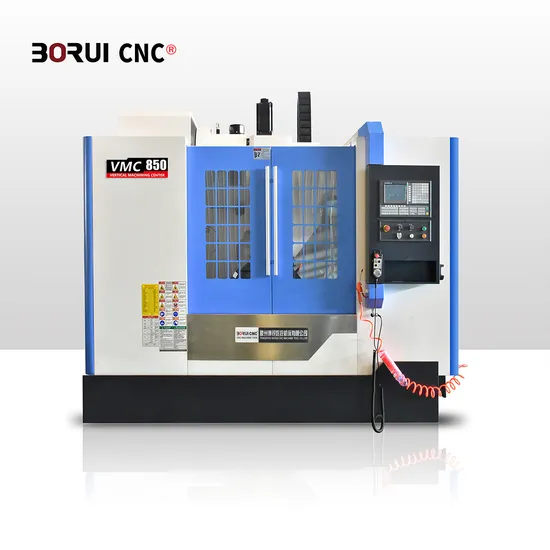

New 4 Axis CNC Milling Machine VMC 850 Vertical CNC Milling Machine Price
Product Description
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
CNC Milling Machine Feature:
* High quality resin sand , ensure machine driven stability
* Separated electronic handwheel
* External 232 interface
* Taiwan high precision and speed spindle
* Taiwan armless type ATC with 16 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running
* Totally enclosed, safety and beautiful
Product main technical parameters:

CNC machining machines for sale message center	VMC850
Capacity
table size	1050X500mm
Max. table load	600kg
T slot qty-width*distance	5x18x90
Spindle
spindle speed	8000 r p m
spindle nose to table surface	105-655mm
Spindle center to Column surface	628mm
Spindle taper	BT40
Main motor power	7.5/11kw
Three-axis servo motor power	2.0/2.0/2.0kw
Box way
X axis travel	800mm
Y axis travel	500mm
Z axis travel	550mm
X/Y/Z axis rapid feed	24/24/20m/min
Cutting feed speed	10m/min
Automatic tool changer
Tool changer type Tools capacity	drum/ hat type (arm type optional ) 16/16
Max. tool length	250/350mm
Max. Tool diameter	φ100(adjacent tool)/φ150(not adjacent tool)
Max.tool(kinfe) weight	8kg
Tool changing time(tool-to-tool)	1.8sec
Accuracy
Positioning accuracy	±0.005/300
Repeat positioning accuracy	±0.004/
Net Weight	4500 kg
Overall Dimension	2780X2450X2700

Standard : Optional :
* Siemens 808D controller * FANUC, SIEMENS828D, GSK , KND
* BT40 Armless type ATC with 16 tools * Arm type ATC
* Taiwan spindle, screw and locking nut, linear, cylinder . * 4th axis
* Japan NSK bearing * Automatic chip convey
* Germany R+W coupling
* Automatic lubrication system
* Cool-heat exchanger
* Tri-color alarm lamp
* Full splash guard* spindle taper hole cleaning system* cooling system
