Product Details
Product Description
Product Description
Screen printer Technical parameter:
Model No.
| TM-70100D
|
single-chip control
| X/Z Common motor
|
Print area
| 700X1000mm
|
Table size
| 800X1100mm
|
Max frame
| 900X1350mm
|
Printing thickness
| 0~ 50mm
|
Overlay accuracy
| 0.02mm
|
Platform precision(mm)
| About +/-0.075
|
Printing pressure
| 4-8kgf/cm2
|
Air pressure
| 0.5~0.6(Mpa)
|
Air consumption
| 35L/min
|
Printing speed
| 900pcs/h
|
Power
| 380v /2.5kw
|
Dimensions (LXWXH)mm
| 1550X1200X1750mm
|
Weight
| 550kg
|
if add robot arm add $3000
uv tunnelTechnical parameters
TYPE
| TM-UV750
|
Belt Width(mm)
| 730
|
Effective W(mm)
| 750
|
Tunnel H (mm)
| 40
|
Conveying speed (m)
| 2~20
|
POWER(P/V/Hz)
| 3/380/50
|
UV lamp（KW*pcs）
| 5.6*2
|
Driving power（W）
| 90
|
Total power（KW）
| 12.1
|
lamp lengh
| 826
|
SIZE（L*W*H）
| 2550*1050*1450
|
WEIGHT（Kg）
| 350
|
|
TYPE
| TM-UV750-L
|
SIZE（L*W*H）
| 4050*1050*1450
|
WEIGHT（Kg）
| 400
|
TM-UV750 UV curing machine 2.55m*1.05m*1.45m
Plywood 2.7m*1.2m*1.8m about 6m³
input 850+shade 200+tunnel 700+shade 200+output 550=2500mm
Distance from Handrail to ground 820mm
Distance from belt to ground 790~810mm can be adjusted
Belt 4900*730mm
Condition: New
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Tamprinter
Application Scope:
machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.
Automatic Grade: Semi Automatic
Color & Page: Single Color
Warranty: screen printer 18 months, uv machine 18months
After-sales Service Provided: Engineers available to service machinery overseas
Packaging: plywood
Delivery Detail: 20 workdays after payment
Performance & Features

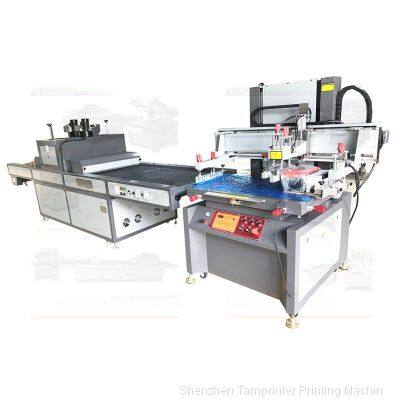

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), Traditional mercury lamp UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.
2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain
if buy kit machine suitable for LCD sealing side requiring small temperature, film printing and so on. pls choose led uv ink.
2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.
3.1
The matching method of the suit screen printing machine is ever-changing. According to different inks, different printing and drying needs, some products require long wrinkle snowflake effect uv tunnels and infrared tunnel furnaces.
Please refer to our brochure for details
/sdp/1963483/4/cp-7265416/0/Brochure.html
Tamprinter Printing Machinery, one of the largest automatic membrane switch screen printing set manufacturers and suppliers in China , is one of the most famous brands in the world printing industrial. professional Equipment factory, we can offer you TAM-Z3 semi automatic membrane switch screen printing set with high precision and reliable performance. Welcome to buy our quality equipment made in China and experience our customized service.
Hot Tags:：Thin sheet printing machine
FAQ（Frequently Asked Questions）
Q1，How can I determine how long a tunnel furnace is needed for our products?
A1: This is the drying process required by the ink effect, including temperature, energy, time and other factors. You need to consult your ink supplier. It is best to provide your samples to us for analysis, and we can also recommend suitable ink suppliers.
Q2：What is the price of the screen printing machine production line?
A2：There are many factors that affect the quotation, we must first understand your needs. Only then can we recommend and accurately quote the machine that suits your product work needs.
>>
