M-100A Plane Globe Valve Grinding Machine
Portable Valve Grinding and Lapping Machine For Globe/Safty Valve
Portable Valve Grinding and Lapping Machine
Grinding scope:
Flat globe-valve(Safety Valve): Φ20mm-175mm
Flat valve seats
Motor power: 750W
Rated Voltages: 220V/50HZ
Allowed adjustable length: L≤250mm
Gross weight: 23.5kg
1. M-100 Portable Globe&Safety Valve Grinding Machine Overview
Model M-100 portable valve grinder is developped for the maintenance of valves as the new generation product. It is mainly used for grinding DN20-150mm flat Globe valve ,cone valves and safety valves,The product can reduce labor intensity, improve labor efficiency and lower maintenance costs.It is widely used in the industries such power generation, petroleum, chemical and metallurgy .It has the following characteristics:
Light, compact, and easy to carry
Split-type assembly makes installation easy and fast
Easy to be used
High efficiency,good grinding quality
Maintenance in the site without valve disassembles and assembles
2. Technical Parameter
Item
| M-100
| M-100A for Flat Globe Valve
| M-100C for Cone Valve
|
Grinding Range（mm）
| DN20-150mm
Offline gate valve,globe valve
| Dn20--150mm
Flat Globe Valve,Safety Valve,
Flat Globe Vavle Seat
| DN20-100mm
Cone-valve
Valve seat angle: 30°,40°,60°,75°,90°can be Selected
|
Voltage（V）
| 220
| 220
| 220
|
Power（W）
| 750
| 750
| 750
|
Frequency（HZ）
| 50
| 50
| 50
|
Max Grinding Depth（mm）
| 250
| 250
| 250
|
Gross Weight（kg）
| 26
| 23.5
| 23.5
|
3. Part list and installation pictures

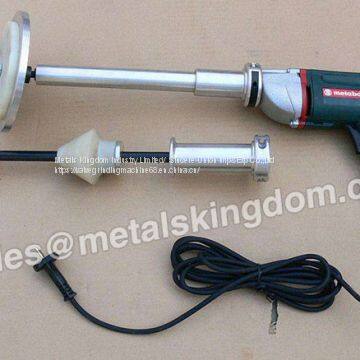

The said grinder is composed of motors,hand-lift set,driving shafts,Centering Sleeve, lapping head, paper-pressure, gasket, nut and so on.
The following pictures separately expressed installation for various valves.
Cone Valves Grinding Machine, Plane Globe Valve Grinde, Portable Safety Valve Grinded Machine
