US$15,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO 9001:2000, ISO 9001:2008, CE
Suitable for
Corrugated Cardboard Production Line
Paper Thickness
Kraft Paper
Item
YK-2200 Auto Splicer
Usage
Corrugated Cardboard Lifting and Loading
Application
Hydraulic Paper Mill Roll Stand
Use for
2/3/5 Layers Line Width 2200mm
Transport Package
Standard Packaging
Production Capacity
200sets/Month
Product Description

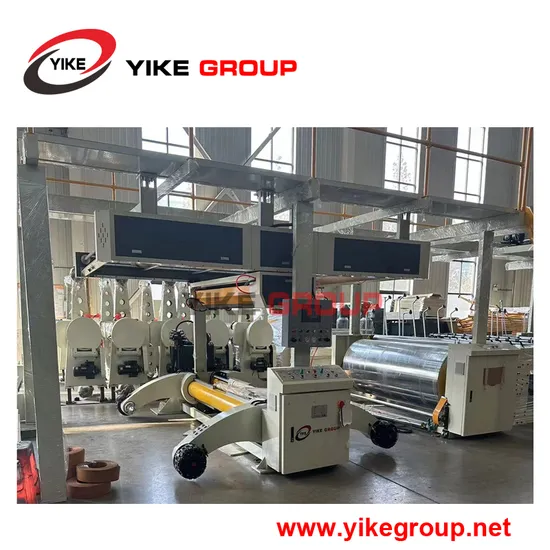

YK-2200 Corrugated Cardboard Production Line Auto Splicer
Characteristic of for splicer : easy to match the present corrugated line . with touch screen to help us maintain and monitoring the data of order for telecommunication. easy and clear operation monitoring the length, weight,tension, diameter of the paper and speed,,,, setting minimum diameter splicing. Operation easy, fast for preparing paper splicing preparing is easy 1.5min to change paper 1.5 Maintaining
adopting imported parts to ensure a low failure rate
Our suggestions on auto splicer the splicing speed must be faster the the line speed.because splicing failure occupy a huge proportion of the total wastage. with low weight or low quality paper(strength below 4n/mm) must use a better slicing control to ensure the speed, so we suggest you to choose our model 300.( 4n/mm)- splicer-300 . Splicer construction carbon steel frame, single-end box iron design. single head structure similar as Mitshibishi design. type of braking system on mill roll stand: pneumatic or magnetic. Technical parameters designed speed:200m/min (for fluting liner), 250m/min for top liner:200m/min () 250m/min() way of splicing: lap joint with sawtooth knife : max size:2200mm, as per customer requirement. 2200mm, liner gsm: 50g/-350g/ :50g/~350g/ reaction time: about 1.5 section : 1.5 power required: 380v,50hz for driving; 20a, 24v for control : 380v,50hz,20a/ 24v Splicing speed
| LINER GSM (G/) | FOR TOP LINER(M/MIN) | FOR FLUTING LINER(M/MIN) |
| 70~90 | 120 | 100 |
| 90~110 | 150 | 130 |
| 110~130 | 200 | 160 |
| >130 | 250 | 200 |
NOTE:
THE LINER QUALITY AS PER LEE&MAN OR NINE-DRAGON STANDARD.
SPEED REDUCTION OF 10% FOR PAPER REEL WITH BIG WEB SIZE AND BIG REEL DIAMETER.SUCCESSFUL RATE 99%.(IN TERMS THAT THERE IS NO PAPER BREAK FROM EDGE AND NO EMPTY INSIDE)
Main spare parts and brand
electrical element
| NO | DESCRIPTIONS OF THE PARTS | BRAND |
1 | PLC MAIN FRAM PLC | TAIWAN |
2 | PLC AGNOLOG EXTENSION PLC | TAIWAN |
3 | PLC EXTENDED MEMORY PLC/IO | TAIWAN |
4 | SPEED REDUCTION MOTOR WITH HIGH PRESION HARD GEAR | HUIXIN CHINA |
5 | ENCODER | AUTONICS, KOREA AUTONICS() |
6 | SERVO DRIVE | CHINA |
7 | LIMIT SWITCH | OMRON JAPAN |
8 | SERVO MOTOR | SHANGHAI CHINA |
9 | TRANSFORMER BK500 BK500 | SCHNEDER |
10 | BUTTON/INDICATOR LIGHT | SCHNIDER |
11 | SWITCH | SCHNEIER |
12 | ALTERNATING CURRENT CONTACTOR | SCHNEIDE |
13 | POWER BOARD | TAIWAN |
14 | MEDIUM RELAY | SHNEIDER |
15 | CIRCUIT BREAKER 32A 32A | SCNEIDER |
16 | DOUBLE HEAD SOCKET 16A | SCHNIDER |
