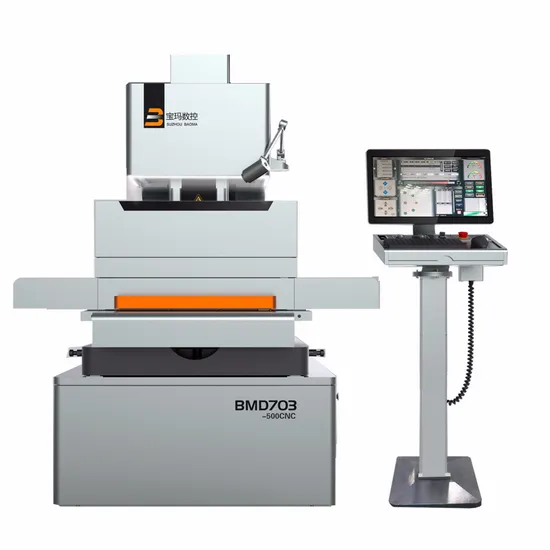

EDM Small Hole Drilling Machine Bmd703-500CNC

Product Description

Main Function
A. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.

CNC EDM Hole Popper BMD703CNC	BMD703-500CNC
Worktable size(L×W)mm	590×410
Table travel(X×Y)mm	500×400
Z axis travel mm	300+(320)
Max. drilling depth mm	0-300
Max. drilling speed mm2/min	60
Max re-track speed of spindle mm/min	320
Max. working current A	30
Electrode diameter	0.2-3.0
Load of table kg	300
Working solution	Water/Saponification
Working reservoir capacity L	30
Power supply	380V AC/50 Hz or 415V AC/50 Hz
Max. Power consumption KVA	3.5
Machine dimension mm	1120×1005mm×1915
Package dimension mm	1400×1450×2050
Machine weight kg	900
Controller type	Automatic 3 axis
Digital Display	X,Y,Z axis
Function of setting depth	yes
Function of group drilling	yes

---
