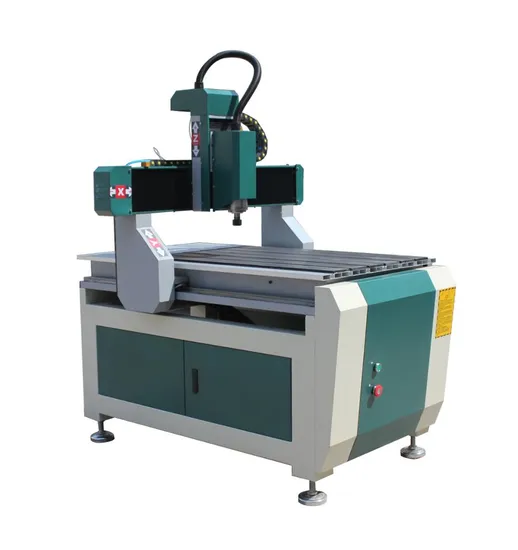

Small Size CNC Router 6090 Engraver and Cutter Machine

Product Description

Small size cnc router 6090 engraver and cutter machine
Configuration:
Feature:
1.Adopt high power 1.5KW water cooling spindle,which is suitable for longtime and high temperature working
2.The lathe is founded by high-quality casting iron that ensures the high stability
3.What ball screws ZK use are the Taiwan TBI ball screws with high precision and fast speed
4.Round rail with high accuracy and high efficiency
5.Large compatibility of software such as Type3,artcam and others
6.Our standard controller is Ncstudio,easy to operate(optional:DSP control system)
7.Aluminum T-slot surface with high strength raises stability and longtime working.
Specification:

Model	ZK 6090
XY transmission	ball screw transmission, round guide rails(also can optional square guide rails)
Table size (cm)	60*90
Z transmission	ball screw transmission
Spindle power	1.5KW
Spindle speed (min/max)	6000 - 24000rpm
Power consumption without spindle	More than 1000W
Speed max.	0-100mm/s
Working speed max.	100mm/s
Stepper or servo motor?	Stepper motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XYZ resolution	0,025mm
Table surface	Cast iron table which with water cooling system
Included Software	Type3 or Wentai software
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooling spindle
Tools	10pcs for engraving and cutting
Control system	Ncstudio control system or DSP control system
Software transmission language	G-Code, HPGL
Interface	USB
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	5 days

Certification:
Service:
1.Guarantee for one year
2.24-hour technical support by email or call
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
