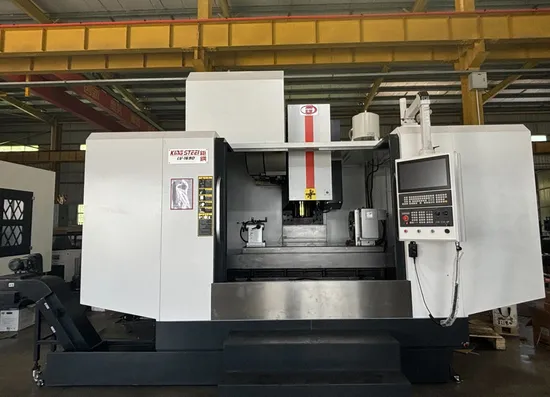

Taiwan Jugang Brand LV-1690 CNC Vertical Machine Center with 4-Axis CE

Product Description

Files with Machine

1. QC report

2. Machine operation manual

3. Foundation drawing

4. Precision testing report

5. Machine circuit manual

6. Controller operation manual

7. CE certification

Product Description

Spindle Torque	699/1520 with gearbox
X/Y/Z fastest feed speed	48/48/48m/min
X/Y/Z cutting feed	1-10000mm/min
Max tool dia.	Full: 110mm, empty: 200mm
Max.tool length	400mm
Max. tool weight	18kg
Optional configuration	Fagor linear scale for 3 axes 20bar CTS with filter device ZF gearbox 600L coolant tank
Accessories	Spindle oil chiller Rigid tapping Automatic power off switch 3 colors alarm light LED working lamps Cooling system Automatic micro lubrication for linears and screws Separate handwheel/ MPG Electric box heat exchanger Fully enclosed sheet metal Tool kit Around spindle coolant and compressed air Leveling screws & pads Compressed air blow out through spindle Chips disc & water tank Back flush chip conveying Water gun and compressed air gun 3 axes screw and linear covers Ethernet interface USB & CF card interface Transformer 10.4 screen LCD Chain type chip conveyor * 1 & screw type chip conveyor * 2 4 axes interface

Detailed Photos

Our Advantages
For the CNC machine casting, most of the materials on the market are HT250 and HT300 at present.
HT250 material is not recommended because it is not rigid enough, easy to deform.
While our cast iron is HT300 grade, and the internal stress of each casting is eliminated by tempering, vibration and natural aging treatment (6-12 months), which keep the casted iron long-time precision and rigidity without deformation.
Our machine bed, column, spindle box and other key parts are made of Meehanite (dense drying) castings, stable organization, permanent quality.
After finite element analysis of the casting computer calculation analysis, reasonable structural strength and reinforcement rib collocation, to provide high mechanical rigidity.
The complete industrial chain from castings, bare engine to sheet metal ensures fast delivery and superior quality.
The machine has high rigidity, high strength and excellent geometric positioning accuracy.
Precision scraping have been used on each casting to ensure that our machine's accuracy is far higher than the national standards.
Precision assembling is a principal part of the installation of CNC machines. In addition to excellent components and casted irons, careful calibration is also essential. To ensure the precision of the machine, KINGSTEEI insists on completing all the assembly by ourselves, monitoring every detail and each step, and refining the assembly carefully. Each procedure has been strictly tested and recorded before proceeding to the next step.
Having great relationship with famous machine parts and electric parts supplier of countries, such as Japan, Germany, France, Taiwan and mainland China, which can ensure all the parts of our machine durable and reliable.
Having a group of Taiwan professionals who have worked in the field of CNC for many years contributes to strong technical guarantee and competitive advantage.
Currently, our company has obtained a series of product patent certificates, and also passed CE and ISO9001 international quality management certification.
Our machines implement the Germany VDI3441 precision standard with high precision, high efficiency, and high rigidity.

Certifications
FAQ
1. Transportation:
By sea with 1x 20" FR container.
2. Delivery time:
Within 80 days after receiving the prepayments.
3. Payment terms:
30% T/T in advance, 70% after inspection before shipping.
4. Warranty:
12 months non-human made damage for mechanical parts and 24 month non-human made damage for NC controller since customer receiving the machine.
5. Engineer Travel, Installation and commissioning expenses:
The round-trip tickets, accommodation and labor cost are all offered by buyer.
6. Installs debugs the personnel and days:
Approx.3 persons, within 7 days (depends on the actual situation).
7. More functions and machine size can be customized according to customer's requirements.

---
