Product Details
Product Description
Product Description
Brief Introductions:
Type:
| 6A2
|
Bond:
| Resin
|
Application:
| Semiconductor Industry, Silicon Ingot, Cylindrical Grinding/ OD Grinding
|
Specification:
| Customized
|
Brand Mark:
| Moresuperhard
|
Trade Terms:
| FOB
|
Packages:
| Hard carton
|
Delivery Time:
| 15 workdays by express
|

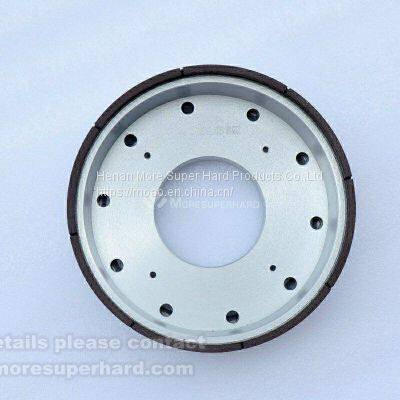

Introductions of Moresuperhard’s Resin Diamond Grinding Wheel
Peripheral grinding of silicon ingots, or processing the outer surface of silicon ingots and to make orientation flat.
Materials used in semiconductors and electronics parts, automobiles and photovoltaic industry. Types of these materials are varied including silicon, sapphire, and gallium arsenide (GaAs).
D (mm)
| T (mm)
| H (mm)
| W (mm)
| X (mm)
| Materials
|
100
| 28
| 31.75
| 3, 5, 6, 9
| 3-8
| Silicon, sapphire, and gallium arsenide (GaAs)
|
200
| 35, 50, 60
| 76, 80
| 3, 5, 6, 9
|
300
| 20, 30, 35
| 127
| 5, 7
|
350
| 40
|
| 5, 7
|
Rough / Fine grinding (100 – 1000#)
|
Other specifications can be custom according to the requirement
|
Advantages of Moresuperhard’s Resin Diamond Grinding Wheel
– Realizes a total-like cost cut by fast material removal
– Minimal influence on crystalline structure
– Low grinding load, good grinding performance and wear resistance
– Ingot surface with a high flat degree.
– Low dressing frequency
Service:
– Detailed Specifications can be customized!
– Provide after-sales service
– Technical support on usage
– Return and exchange of products for non-human reasons
About us
MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools. Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries. With innovative and creative development conception, MORESUPERHARD is tirelessly striving to provide excellent design, superior quality and perfect service to world-wide customers. More than 1000+ customers benefit from our professional technical services.
>>
