| US$145,000.00-155,000.00 | 1 Set (MOQ) |
| Technical Specification | |

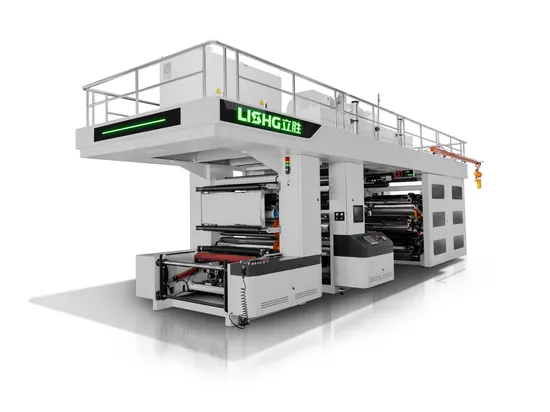

| Model | YTD-61000 |
| Material Feeding Width | 1000mm |
| Max Printing Width | 960mm |
| Colors | 6 colors |
| Material | plastic film 12~120micro |
| Thickness of plate | 1.7mm (double adhesive tape is 0.38mm) can be customized |
| Printing length | Standard is 400mm, Customized is available from 300-800mm |
| Printing speed | 10~250m/min affected by different materials, ink, print pictures so on |
| Register precision | ±0.15mm |
| Total power | 165kw |
| Gear module | 1.5mm |
| Heating method | Electricity heating |
| Unwind/rewind paper | core 3" |
| Max. unwind/rewind dia. | 1000mm |
| Structure type | Central impression(central drum) Gear drive(china) |
| Machine frame thickness | 100mm |
| Drum diameter | 1.2m |
| Suitable ink | Water-based/solvent |
| Machine dimension | 11*3.0*4.36m |
| HS code | 844316009 |
| Part 1 Unwind & Rewind Unit | |||
| SN | Item | Qty | Specification |
| 1 | Air shaft | 2PCS | Roller Dia. 76mm |
| 2 | servo motor control unwinding and rewinding tension | 2SETS | Max roll weighs within 1000kg Roll Diameter within 1000mm Automatic material change can be chosen |
| Part 2 Printing Unit | |||
| SN | Item | Qty | Specification |
| 1 | central drum | 1 SET | 1. Made from superior alloy 2. Steel and precise dynamic balance and electroplated treatment 3. Installed the high precision encoder, synchronous the speed 4. drum diameter is 1.6m |
| 2 | Transmission | 1 SET | Driven by a big gear, high accuracy |
| 3 | Plate roller | 6 Pcs | Standard 400mm for machine Circumference: 300-800mm Can be customized. |
| 4 | Ceramic anilox roller | 6 Pcs | 1. Transfer ink evenly 2. Range: 100-1000 lines/in |
| 5 | Chamber doctor blade | 6 sets | 1. Made from Aluminum alloy 2. Fast speed, not spill the ink 3. Close type to reduce solvent volatilization |
| 6 | Ink pump | 6 sets | 1. Automatic circle system 2. Double diaphragm pump |
| 7 | Automatic lubrication system | 1 SET | Lubricate the big gear of the center drive |
| 8 | Motor for registration | 6SETS | 1. Motorized longitudinal registration and Motorized Transversal 2. check the video inspection to plc |
| 9 | Motor for Forward and backward | 6SETS | Motor control printing group to move forward or backward |
| 10 | Frame | 1SET | 1. Made of alloy cast iron with high strength 2. Thickness 100mm |
| 11 | Guide roller | 1SET | Φ100mm (Surface oxidation treatment) |
| 12 | Crane | 1SET | It's easy to lift and down the printing rollers and anilox rollers. |
| 13 | PLC control panel | 1SET | Touch panel Can be remote controlled |
| 14 | Video inspection | 1SET | Check the printing quality on the video screen |
| 15 | Remoter | 2SET | One controls the crane One for adjusting the plate roller |
| 14 | Cooling chiller system +double wall central drum | 1SET | central drum double wall assort with the chiller, the water running and recycle inside of the central drum, and keep the surface temperature 30ºC (the supplier needs 90 days to make the double wall central drum) |
| 1. Are you a factory or trading company? A: We are a factory, the real manufacturer not a trader. |
| 2. Where is your factory and how can I visit it? A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train) |
| 3. What is your after-sale service? A: We have been in the flexo printing machine business for many years, we will send our professional engineer to install and test the machine. Besides, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales services are always reliable. |
| 4. How to get the machines' prices? A: Pls provide the following information: 1)The color number of the printing machine; 2)Material width and effective print width; 3)What material to print; 4)The photo of the printing sample. |
