Product Description
Product Description

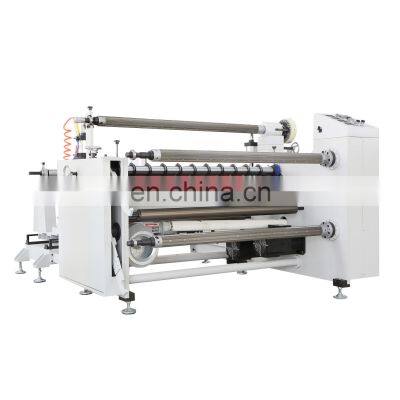

Product DescriptionSpecification Technique DataMachine Speed : 1-150m/min Max material width : 1600mmFeeding Diameter : 800 mmRewinding diameter : 450mmSlitting accuracy :±0.1mmVoltage: 380V 3 Phase Main Motor Power :6kw (2 motor power) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:（0.4-0.6）Mpa(customer-owned)Finished products Min. Width by standard slitting :25MM Max Feeding Width ( mm ) 1600 Min slitting width 25mm Main Engineer Power ( KW ) 6 Speed (M/M ) 1—150 meters per minute Need floor Size ( mm ) 2600*2000*1600 Feeding diameter ( mm ) 800 Rewinding diameter ( mm ) 450 precision ( mm ) ±0.10 Power 380V 50HZ PRICE FOR MOQ 1 SET USD knife number on machine 10 sets Shipping term FCA Shanghai Function Profilefrequency control of motor speed, operation more easy. Control more accurate. Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01,error ±0.15MIndependent fan waste discharge。 Double motor configuration，The scroll of rewinding can be positive and negative transfer .Packing & DeliveryWooden box.Company ProfileKunshan Dapeng Precision Machinery is professional manufacture of high precision Die Cutting Machine and high precision hydraulic die cutting machine , Slitting machine,laminating machine ,Roll to Sheet Cutting Machine, Hot and cold type sheeting machine and other machinery. Our machines are mainly used for the production of industrial tapes, electronic shielding films, protective films of PVC/PET, copper aluminum foils, foams and other relate materials. Our company has excellent production equipment and strong technical force. We constantly improve our management system and after-sales services. Our company has won a good reputation among customers.Our company adopts foreign advanced technology. Through several times of manufacturing reform and innovation, we have developed consistently. We can customize difficult models. We not only provide users with products, but also provide services and professional technology for our customers.In the fierce market competition, we always adhere to the tenet of "quality first, users first" for the purpose to provide more perfect products and more superior services. We hope to cooperate with you to create a win-win situation.
>>
