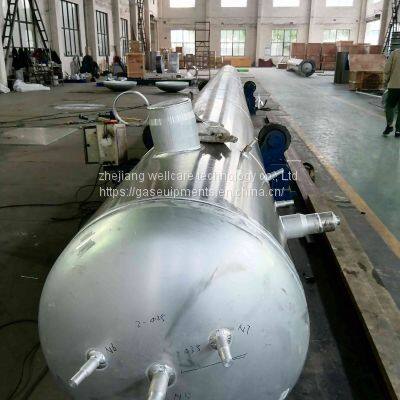

small liquid nitrogen plant, on-site production and supply of liquid nitrogen

Product Details

Product Description

Product Description
Introduction:
Description of all liquid air separation process flow Liquid air separation equipment usually refers to air separation equipment that directly produces liquid oxygen and liquid nitrogen products. This air separation equipment generally does not produce or produce a small amount of gas products. In order to obtain a large number of liquid oxygen and liquid nitrogen products, there are roughly two methods:
First, produce gaseous products first, and then use liquefaction devices to liquefy gaseous products according to needs. This method has relatively high energy consumption;
The other method is to directly use liquid air equipment to produce liquid oxygen and liquid nitrogen products. Compared with the former method, the energy consumption of this method is lower. From the perspective of process organization, liquid air separation equipment can be regarded as a combination of conventional gaseous product air separation equipment and liquefaction unit, so its process is relatively complex.
The main technical specifications of internal compression

Model contents		KZON- 50/50	KZON- 80/80	KZON- 100/100	KDON- 180-20	KDON- 300-50	KDON- 350-80	KDON- 500-150	KDON- 800-200	KDON- 1000-300
Gox flow	Nm³/h	50	80	100	180	300	350	500	800	100
Gox purity	%(O2)	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6	≥99.6
Gan flow	Nm³/h	50	80	100	20	50	80	150	200	300
Gan purity	Ppm(O2)	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Operating pressure	Mpa	1.2	1.2	1.2	1	1	1	1	1	1
Start-up time	hour	≤12	≤12	≤12	≤10	≤10	≤8	≤8	≤8	≤8
Operating period	year	≥1	≥1	≥1	≥1	≥1	≥1	≥2	≥2	≥2

---
