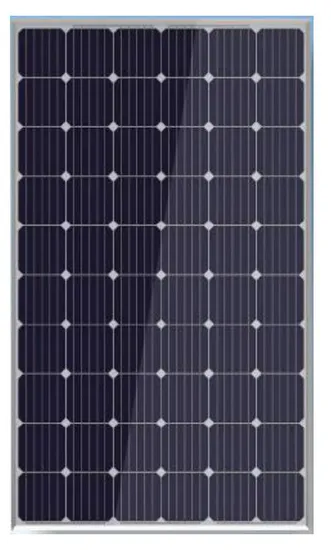

Mono Crystalline 270-300watts PV Solar Module Panel Set

Product Description

Hot Sale Small size Mono crystalline Module 270-300 Watt Product Description Monocrystalline
PV Module
Power Output: 270W-300W
Power Tolerance:0W-+5W
Maximum Efficiency:18.3%
Electrical Charateristics

Product Model	ZH60M-270	ZH60M-280	ZH60M-290	ZH60M-300
Maximum Power W	270	280	290	300
Maximum Power Current (Imp)	8.41	8.63	8.76	8.99
Maximum Power Voltage (Vmp)	32.10	32.42	33.12	33.42
Short Circuit Current(Isc)	8.92	9.13	9.25	9.43
Open Circuit Voltage (Voc)	37.12	38.58	38.70	39
Module Efficiency	16.5%	17.1%	17.7%	18.3%
Power Tolerance	±5W
Maximum System Voltage	1000/1500Vdc
Maximum Fuse Rate	15A
Standard Test Conditions STC	AM1.5 1000W/m² 25°C

Temperature Charactristics

Temperature Coefficinents of Voc( % °C)	-0.38
Temperature Coefficinents of Isc ( % °C)	+0.04
Temperature Coefficinents of Pm ( % °C)	-0.47
Temperature Coefficinents of Vm ( % °C)	-0.38
Temperature Coefficinents of Im ( % °C)	+0.04

Mechanical Specifications

Cell Type mm	Mono 210*70
No. of Cells pcs	39 (3*13)
Size of Modules mm	1650*992*40 (30,35)mm
Front Glass Thickness	3.2mm
Weight Per Piece KG	19±5%
Module Composition	Glass/EVA/Backsheet (white)
Maximum mechanica test load Pa	Front 5400 Pa Back 2400 Pa
Number of Diodes	3
J-box Prating	IP68
Operating Temperature °C	-40 to +85
Nominal module operating temperature NMOT	45 ±2 °C

Packaging & Shipping Packaging Details
Pallet package
