Nw273 Spherical Bursting Tester for Toilet Paper Testing Equipment/Laboratory Instruments

US$5,000.00-5,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Nw273
Condition
New
Operation Display
Touch Screen
Transport Package
Wooden
Trademark
MEBON
Origin
China
HS Code
9024800000
Production Capacity
500/Year

Product Description

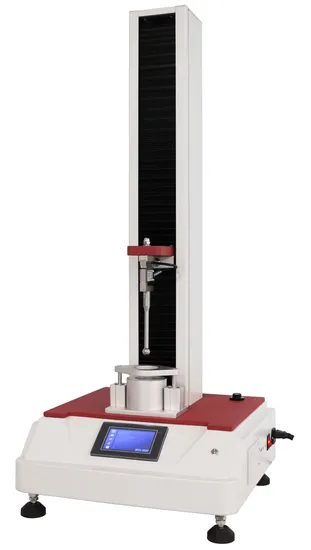

Spherical Bursting Tester For Toilet Paper NW273
Application
It is used to test the bursting resistance of toilet paper or its penetration resistance.
Standards
GB/T 20810-2018,GB/T 24328.7
Feature
1. Touch screen control, Chinese and English menu, man-machine dialogue mode, easy to operate.
2. Built in thermal printer, easy to quickly print test results on site.
3. Professional computer analysis software can realize two-way operation with computer. It can be used for report statistics and graph analysis.
4. High precision sensor, good linearity and stability; Stepper motor drive, ball screw drive.
5. Pneumatic clamping, easy to load and unload samples, improve test efficiency.
Specification
1. Force range: 0.01 ~ 50N resolution: 0.01N
2. Test speed: 1 ~ 150 mm / min
3. Fixture inner diameter: 89 ± 0.2mm
4. Ball diameter: 16 ± 0.05mm
5. Dimensions: 450 ×450× 750mm
6. Weight: 35kg
7. Power supply: AC220 V, 50 Hz, 100 W

Operation interface
