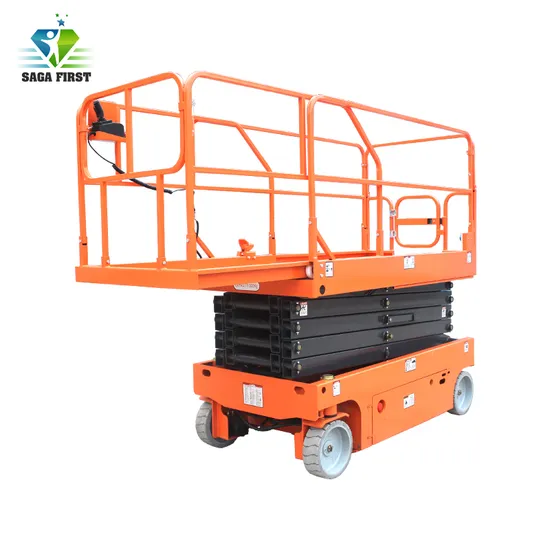

High Quality 6-14m Hydraulic Self Propelled Electric Scissor Lift

Product Description

Good Quality Full Electric Scissor Kind Man Lift
Hydraulic Self Propelled Scissor Lift is driven by hydraulic principle. Hydraulic motor supply power for both driving and lifting. It is different drive model with Electrical drive. Hydraulic self propelled scissor lift is famous for its high precision, great sensitivity, low ware and lower noise.
Configuration:Folding guardrails
Multi-function control handle
Anti-skidding platform
Extendable platform
Automatic lock gate
High strength scissors
Durable hydraulic cylinder
Stable hydraulic pump station
Hydraulic drive motor
Non-marking PU driving wheels
Pot hole automatic protection system
Automatic brakes system
Emergency stop button
Emergent descent valve
Automatic diagnostic indicator
Tilt sensor alarm
Siren
Safety brackets
Forklift hole
Intelligent battery charger
High capacity battery
Safety Precautions:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
Features & Advantages:
1. The product is controlled based on the imported intelligent technology.
2. It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable.
3. It can climb a gradient very well.
4. The recharge will restrict the rising of the platform.
5. The driving motor has the automatic braking function.
6. The emergent drop will be locked.
7. The malfunction can be diagnosed automatically and the maintenance is very convenient.
Specification:

Model No.	SP06	SP08	SP10	SP12
Lifting Height (mm)	6000	8000	10000	12000
Lifting capacity	300	300	300	300
Folding maximum height-guardrail unfolding (mm)	2150	2275	2400	2525
Folding maximum height-guardrail removed (mm)	1190	1315	1440	1565
Overall Length (mm)	2400
Overall Width (mm)	1150
Platform Size (mm)	2270×1150
Platform extend size (mm)	900
Minimum ground clearance-folding (mm)	110
Minimum ground clearance-rising (mm)	20
Wheelbase (mm)	1850
Minimum turn radius-inner wheel (mm)	0
Minimum turn radius-outer wheel (mm)	2100
Power source (v/km)	24/3.0
Running speed-folding (km/h)	4
Running speed-rising (km/h)	0.8
Rising/falling speed (sec)	40/50		70/80
Battery (V/AH)	4×12V/135AH
Charger (V/A)	24/25
Maximum climbing ability (%)	20
Maximum working allowable angle	2-3°
Way of control	Electro-hydraulic proportion control
Driver	Double front-wheel
Hydraulic drive	Double rear-wheel
Wheel size-stuffed&no mark	Φ381×127	Φ381×127	Φ381×127	Φ381×127
Whole weight (kg)	1900	2080	2490	2760

Picture for Your Review
Certificate:ISO and CE
Our Service: 1.We can design the customerized scissor lift table as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the scissor lift table break down to help you repair.
6.Parts of scissor lift table can be sent to you by express within 7 days if needed.
Frequently Asked Questions:

1.How can customer buy parts once it break down?	The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.	One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?	One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

---
