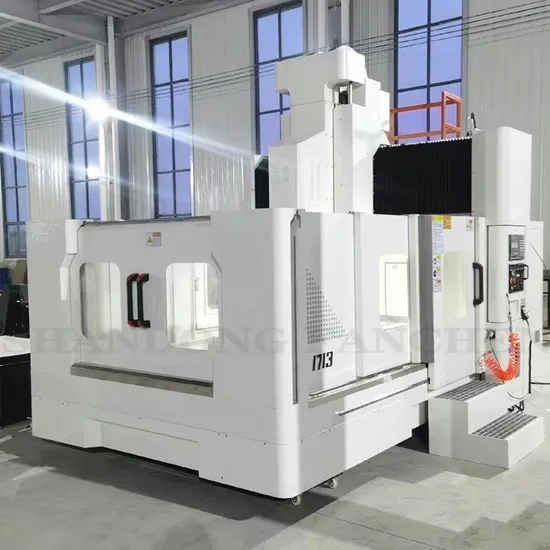

Moving Beam Gantry CNC Machine Tool Machining Center 1611 1814 2016

US$62,900.00-122,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMB1611
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
1800/1800mm
Workbench Bearing
1500kg
Ttype Slot Size
5/18/140mm
Longmen Width
1100mm
Xaxis
1600mm
Yline
1100mm
Zaxis
600mm
Repeat Fixed Position Accuracy
0.008mm
Range of Speeds
800rpm
Electrical Machinery
15/18.5kw
Bore-Hole
Bt50
Cut Into Give Speed
10000mm/Min
Machine Tool Shape Size
4100/2600/3400mm
Weight
12000kg
Transport Package
Xyloid
Specification
4100/2600/3400mm
Trademark
FANCHEN
Origin
China
Production Capacity
100

Packaging & Delivery

Package Size
410.00cm * 260.00cm * 340.00cm
Package Gross Weight
12000.000kg

Product Description

product model unit GMB1611

worker do short for Taizhou		 bed dimension mm 1800×800
Workbench bearing kg 1500
TType slot size mm 5×18×140
Longmen width mm 1100

add worker pattern Around		 Coordinated itinerary Xaxis mm 1600
Yline mm 1100
Zaxis mm 600
Distance from spindle end surface to working surface mm 140-740

fixed position accuracy		 operative norm
JB/T8772.4
-1998		 Xaxis mm 0.025
Yline mm 0.025
Zaxis mm 0.03

repeat fixed position accuracy		 operative norm
JB/T8772.4
-1998		 Xaxis mm 0.008
Yline mm 0.008
Zaxis mm 0.008
principal axis range of speeds rpm 8000
electrical machinery Kw 15/18.5
bore-hole BT50
Spindle form Belt type
feed Cut into give speed mm/min 10000
quick travel m/min 20
Feed motor torque X/Y/Z N.M 30/25/35
tool magazine
volume or so 24
Knife library form Knife arm type
Change the knife time S 2
Use the pressure MPA 0.6
Voltage frequency V/Hz 380/50
Machine tool shape size mm 4100/2600/3400
weight kg 12000

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
