Product Description
Product Description

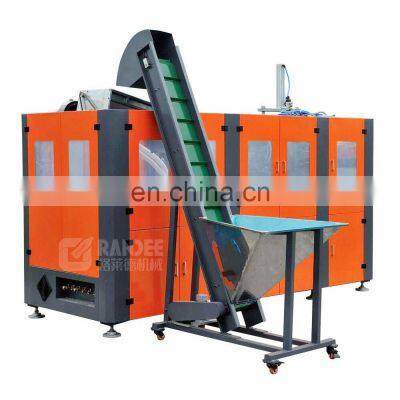

Automatic servo motor PET bottle blow moulding machineProduct Description Four servo motor system :1.Stretching is driven by servo motor 2. Mold's opening & closing is driven by servo motor 3. Slideway rotation in oven is driven by servo motor 4. Preform feeding is driven by servo motor Machine show 4 cavity mold Our engineer make 2D drawing for free Machine description:New Auto Preform Unscrambler SystemAdopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preformblock and abrasion problem.There are two photoelectric sensors to control preform-loading motorand preform-separating cylinder that will warn the operator to add thepreforms into the hopper when lacks preform instead of stopping the machine.New Heating SystemPerfect heating system design decrease power consumption. Special oven design helps power saving and easy maintain.Each lamp position and temperature can be adjusted.Cycle air-cooling system keeps the oven temperature constantly.The Application Of Servo System On Main TransmissionThe transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.Servo Technology Innovation On Clamping System & StretchingAdopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.Easy To Change Bottle ShapeDrawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.Intelligent Human-Machine InterfaceHuman-machine interface control, easy operate and monitor.Live production information supervise, auto record production data everydayFailure warning and troubleshooting. Main technical parameter:ModelGD-5000Clamping force480KNClamping stroke125mmMax.stretching stroke370mmBottom moving sttroke60mmNumber of cavity4 cavityTheoretical output5000BPH(500ML)Max.mould thickness300mmElectrical system Voltage standard380V 3P 50HZ or special orderNumber of heating zone4 sectionsTotal power(full loaded)15kwBottle specifications Max.bottle volume2000mlNeck diameter range38-50mmntainer diameter360mmntainer height380mmAir system Low air compressor1.0MPaHigh sir compressor3.0MPaDimension & height Blowing molding machine3.65*2.1*2.0mPreform auto loader1.5*1.5*2.2mNet weight3.8T Component listNoNameModelBrandCountry of origin1High pressure valve321H-35-2995PakerAmerica2Low pressure valve7321BAN00-DC24VPakerAmerica3Check valve9C800SPakerAmerica4Action solenoid valve AirTACTaiwan5Host powerNES-200-24VMEANWELLTaiwan6PLCFX1N-60MRMitsubishJapan7Touch screenTK6070IHWEINVIEWTaiwan8Standard cylinderSC100X135-SAirTACTaiwan9Thin cylinderSDAS25X43-BAirTACTaiwan10Pneumatic processing elementsGR20008-F1AirTACTaiwan11Swing cylindersDSR-25-180-PFESTOGermany12Quick exhaust valveSEU-3/8FESTOGermany13Proximity sensor AutonicsKorea14Photoelectric switch OPTEXJapan15Module SEMIKRONGermany16Ruby lampCR30-15DNHAICHUANGChinaCompany InformationOur teamFAQQ1: How to find suitable plastic bottle blow moulding machine or complete water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn Q2: What's the capacity of plastic bottle moulding machine?A2: We have full automatic and semi automatic unit with 800BPH to 20000BPH for 5000ml plastic bottle Q3: How to choose the capacity of blowing machine for water production line?A3: If you want 600-800BPH for 5000ml water production line, you can choose semiautomatic blowing machine or automatic one cavity blowing machine,if you want 1000-1200BPH, you can choose automatic 2 cavity blowing machine, if you want more bigger capacity, you can send me inquiry, we can give you more professional technical solutions. Q4: Are you a trading company or a manufactory?A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q5: Do you have technical support after we purchased your machines?A5: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q6: If you buy our machines, can you offer us wear-out spare pats?A6: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
