Product Details
Product Description
Product Description
Technical Description:
1. Material: Environmentally Friendly Aluminum Plate
2. Fan: Nidec DC inner rotor motor (with metal impeller).
3. Equipped with high-efficiency filter with aluminum frame and no partition (1170*1170*69).
Filtration efficiency: Class 100@0.3um.99.995%@0.3um H13.
4. Air speed: 0.45-0.75 m/s ±5% (adjustable).
Power supply: 220V50Hz,
5. Noise: 48-58dB ± 5dB (static test at 1m below the high-efficiency filter)
6. Rated Power: ≈130W
7. Can be equipped with group control (optional)
Specification
Product

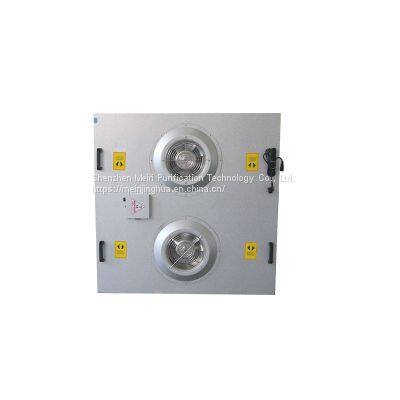

| Fan Filter Unit
|
Model NO.
| M-R1175wl
|
Material
| steel/SS./Aluminium/Aluminum Composite Panels/Custom
|
Joist Size
| W1200*1200
|
External Size
| 1175*1175*350
|
HEPA SIZE
| H13-U17,10-100class,1170*1170*69/custom
|
Air Speed
| 0.45-0.75m/s
|
Noise
| 52-58db±5db
|
Motor
| Adjustment of gear，Stepless regulation，use 8 years ,warranty 5 years
|
Voltage
| AC/DC，220V/120V/110v，50Hz，custom
|
>>
