Basic Info.
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Application Field
Agriculture, Forestry
Nominal Diameter of Water Inlet
50mm
Nozzle Diameter
14mm-30mm(Standard:16, 18, 20, 22mm)
Flow Rate
12.9m3/H-100m3/H
Interface Method
Flange Interface
Jet Elevation Angle
0-48 Degree Adjustable
Packaging Specifications
81*22.5*28cm
Airbrush Cruising Speed
Stepless Adjustable
Transport Package
Export Carton
Specification
81*22.5*28cm
Production Capacity
One Hundred Thousand
Product Description

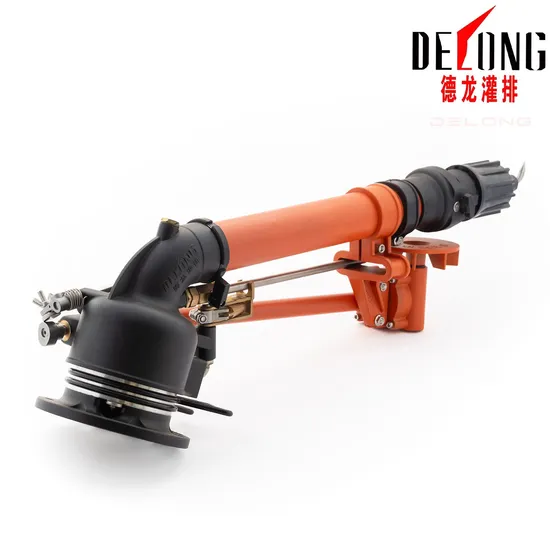

DLPL55T-S spray gun is suitable for farmland irrigation and dust removal in industrial and mining industries. Popularizing water-saving irrigation technology is none of the main ways to solve agricultural water shortage and ensure stable and high grain yield. At present, it has become an important measure for water-deficient countries in the world to develop agriculture.
DLPL55T-S sprinkler gun can be used in large and medium-sized disc sprinkler irrigation machines, and can also be used with the tail gun of large pointer sprinkler irrigation machines. It can effectively reduce and remove dust and significantly reduce PM2.5 in fields such as field irrigation projects, landscaping, water spray dust removal in stockyards,power plants, ports,ports,docks,railway freight yards, coal and coke chemical plants and other industrial enterprises. This product is equipped with a variety of nozzles of different calibers, which can achieve flow rates from 12.9m³/h--100m³/h working pressure.
U Nozzle diameter
mm | P Pressure
kg/cm² | G range
m | Q flow rate
m³/h |
| 14 | 2 | 25 | 12.9 |
| | 3
| 29 | 15.4 |
| | 4
| 32 | 17.8 |
| | 5
| 35 | 19.9 |
| 16 | 2 | 27 | 15.7
|
| | 3 | 32 | 19.3
|
| | 4 | 35.5 | 22.3
|
| | 5 | 37 | 24.9
|
| 18 | 2 | 29 | 19.8 |
| | 3 | 34 | 23.7 |
| | 4 | 36.5 | 27.4 |
| | 5 | 38 | 30.6 |
| 20 | 2 | 33 | 25.7 |
| | 3 | 36 | 28.6 |
| | 4 | 40 | 33.0 |
| | 5 | 41.5 | 37.0 |
| 22 | 3 | 39 | 34.0 |
| | 4 | 41.5 | 39.4 |
| | 5 | 42 | 44.1 |
| | 6 | 46.5 | 48.3 |
| 24 | 3 | 41 | 40.1 |
| | 4 | 43.5 | 46.3 |
| | 5 | 45.5 | 51.8 |
| | 6 | 48.5 | 56.8 |
| 26 | 3 | 42 | 46.6 |
| | 4
| 44 | 53.9 |
| | 5 | 47 | 60.3 |
| | 6 | 49.5 | 66.1 |
| | 7 | 51.5 | 70.6 |
| 28 | 3 | 44 | 56.1 |
| | 4 | 45.5 | 62.0 |
| | 5 | 48 | 69.3 |
| | 6 | 50.5 | 75.9 |
| | 7 | 53.5 | 81.9 |
| 30 | 4 | 47 | 73.6 |
| | 5 | 49 | 80.4 |
| | 6 | 51.5 | 86.6 |
| | 7 | 54 | 93.7 |
| | 8 | 55 | 100 |
>>
