Calander / Heating Roller Machine / Non Woven Felt / Blanket / Carpet Making Machinery

Product Description

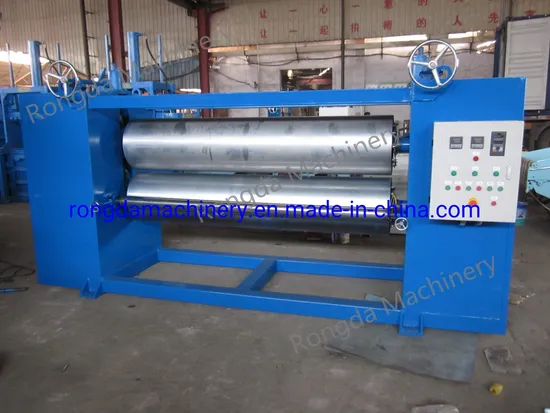

Heating roller machine

NO.	ITEM	DESCRIPTION
1	Model	GMZ-320/2
2	Dimension of M/C	L3800W1400H2025(mm)
3	Weight	6700kgs
4	No of heating roller	2sets
5	Heating roller	Φ370mm×L3200mm
6	Temperature of working face	≤220ºC
7	Running speed	≤8m/min
8	Working width	2600mm
9	Structural features	1:Two-roll vertical, electric heat conduction oil heating insulation. The main body frame is made of high quality carbon steel welded together 2: At the bottom of the roller is adjustable, in the middle of the roller is fixed, the upper roller manual worm gear to adjust elevator, the adjusting range is 0 to 50 mm
10	Heating roller	Φ370mm; Material of 45 # steel, wall thickness, 30 mm roller surface 2800 mm long, fine grinding hard chrome plated surface or tetrafluoroethylene adhesion. Adjustable surface temperature of 100 ~ 220 ºC
11	Running drive	3 kw - 6 type motor with 120/50:1 worm gear reducer

Related Products:
Our Company:
Gaomi Rongda Machinery Co.,Ltd. Was established in 1999,Located in Gaomi,Shandong province,which is near to Qingdao sea port,super geographic location for transportation.
We company has been engaged in the field of textile waste recycling and processing of mechanical processing and manufacturing.Mainly produce Textile waste recycling machinery line,which include opening machine and cleaning machine,Textile waste cutting machine,Baling machine,Nov woven Fabric Making Machine,Needle punching machine,Quilting machine and Spare parts.
