Sturdy and durable aluminum Alloy front bezel + High strength cold rolled steel back case.
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
High performance motherboard, 7x24 continuous operation.
Full sealed and fanless design, full IP65 waterproof , sunlight readable.

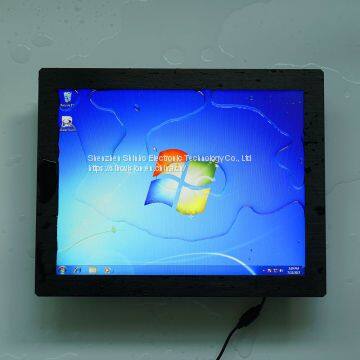

Model:SC100W
|
PC
|
CPU
| Intel® celeron J1900, 2.0GHz, quad core, fanless
|
Chipset
| Intel ValleyView SSA-CUnit
|
Memory
| 2G DDR3, (4G optional)
|
Hard Drive Capacity
| 32G SSD
|
Hard Drive Optional
| SSD: 64G,128GB,256GB
|
HDD: 500GB,1TB
|
Graphics
| CPU Integrated graphics HD Graphics and support 1080p HD photo quality
|
Audio
| Realtek ALC662, High Definition Audio (HD), Line in, Line out
|
Network
| Onboard Realtek RTL 8111E Gigabit Ethernet controller
|
Wireless Network
| WIFI optional
|
I/O Interface
| 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA, 1xHDMI
|
Operation System
| Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
|
LCD panel
|
Panel size
| 10.4"-21.5"
|
Support Color
| 16.7M colors
|
Brightness (cd/m²)
| 1000 nits,sunlight readable
|
Response time
| 10ms
|
Contrast ratio
| 1000:1
|
View angle
| 80°/80°/85°/85° (R/L/U/D)
|
Touch panel
|
Touchscreen Type
| Project Capacitive Touch (10 points)
|
Touch options
| 5 wire resistive touch
|
Power Supply
|
External Power Supply
| AC 100 - 240V
|
Working voltage
| 9-24V wide voltage
|
Shinho is one of the leading Wall Mount Touch Screen PC suppliers. Our 15 Inch Industrial Panel PC has high quality and competitive price.
