Glazing Robot 400kg/600/800kg in Vacuum Lifter for Window Installation

Product Description

Glass Handling Robot/ Glass Installation manipulator
Description:
1. Double system control, one vacuum system for working, and one for alternate;
2. Adopt American THOMAS vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER power unit, and intelligent maintenance-free battery, during the use, without air source or power supply, it can achieve electric walking, lifting, lowering, taking, and releasing air by electrical. Manually rotated 360 degrees in the vertical type, and manually rotated 90 degrees in the horizontal type.
3. With Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.
4. With a vacuum pressure auto supply system to ensure the whole vacuum system maintained at a relatively constant safety pressure value, If there is an unexpected power failure, the pressure holding function can extend the emergency handling time, it is safer to use.
5. Adjustable design can be changed the position of the suction cups and assembled in various ways according to needs, each suction cup equipped with a separate control valve can handle a glass of different shapes and sizes.

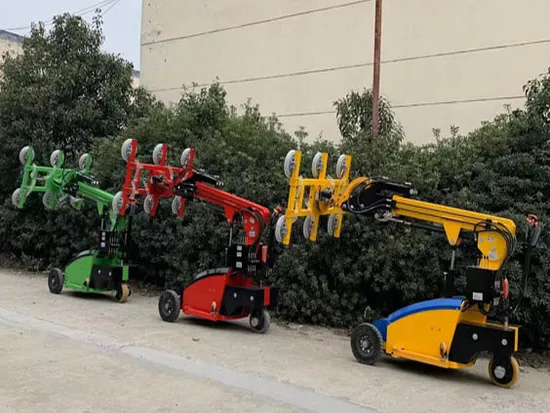

Detailed Pics:
Specifiction Table:

Electric Robot	Unit	Detailed info
Rated load capacity	kg	300	350	400	500	600
Manual rotating	deg	360	360	360	360	360
lifting height	mm	3500	3500	3500	3500	3500
Manipulation	/	Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
Charger	V/A	24/12	24/12	24/15	24/18	24/18
Drive motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
Lift motor	V/W	24/2000	24/2000	24/2000	24/2200	24/2200
Overall Width	mm	810	810	810	810	810
Overall Length	mm	2660	2660	2660	2800	2800
Driving wheel dimension	mm	250*80	250*80	250*80	300*100	300*100
Suckers diameter	mm	300	300	300	300	300
The glass size	mm	3660*2440	3660*2440	3660*2440	3660*2440	3660*2440

Dimension Drawing:
Other Related Product:
Electrical Vacuum Lifter
Pneumatic Vacuum Lifter

Welcome to inquiry!

---
